SKU: 16968 | UPC: 690092176860

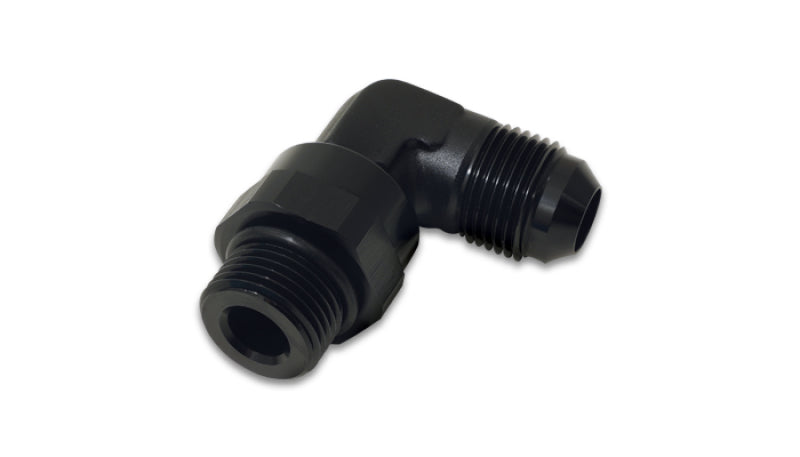

Vibrant -10AN Male Flare to Male -10AN ORB Swivel 90 Degree Adapter Fitting - Anodized Black
This 90-degree swivel adapter fitting connects -10AN male flare lines to -10AN male ORB ports for precise oil system routing in high-performance builds. It suits custom engine swaps, race cars, turbo setups, and dry sump systems where flexible hose alignment prevents kinks and restrictions. Black anodized finish delivers corrosion resistance alongside clean aesthetics in engine bays.
Key Features
- CNC-Machined 6061-T6 Aluminum: Light weight at 3 ounces provides strength without adding bulk to oil systems
- Black Anodized Finish: Protects against fuel, oil, and heat while matching blacked-out performance components
- Swivel ORB Design: Rotates 360 degrees post-installation for exact hose positioning and stress-free connections
- 90-Degree Elbow: Compact 2.125-inch height and 1.25-inch centerline radius fits tight spaces around engines and transmissions
- Leak-Free Sealing: Precision -10AN flare and O-ring boss threads handle high-pressure oil flow up to 1000 PSI
Product Notes
- Pair with -10AN braided hose and matching clamps for secure assembly
- Clean fittings before installation to maintain O-ring integrity
- Packaged in protective foam insert to prevent thread damage
Installation Notes
- Professional installation recommended.
- Torque ORB side to 40-45 ft-lbs. flare side seats by hand-tight plus 1/8 turn
- Compatible with standard AN-10 hardware and aluminum or steel lines
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | - | Performance Vehicles | Custom Oil Systems |
| 1960-2024 | Any | Race/Street/Off-Road | AN-10 Oil Line Builds |
Why Choose Vibrant Performance?
- Earned trust from industry professionals worldwide for oil system reliability
- Manufactured to strict quality standards for consistent performance
- Complete range of fittings serves all fabrication and racing applications
Frequently Asked Questions
-
Q: Does this fitting work with standard -10AN braided hose?
A: Yes, the male flare end accepts any -10AN hose end with 37-degree seat for secure, reusable connections. -
Q: What seals the ORB connection?
A: Straight-thread O-ring boss uses a bonded O-ring for reliable sealing without tape or sealant on threads. -
Q: Can it handle high oil pressure?
A: Rated for pressures common in performance engines. test system after install and monitor for leaks.
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Individual protective box 4 x 4 x 2 inches
- Weight: 0.3 lbs shipping weight
