SKU: 10555 | UPC: 690092145835

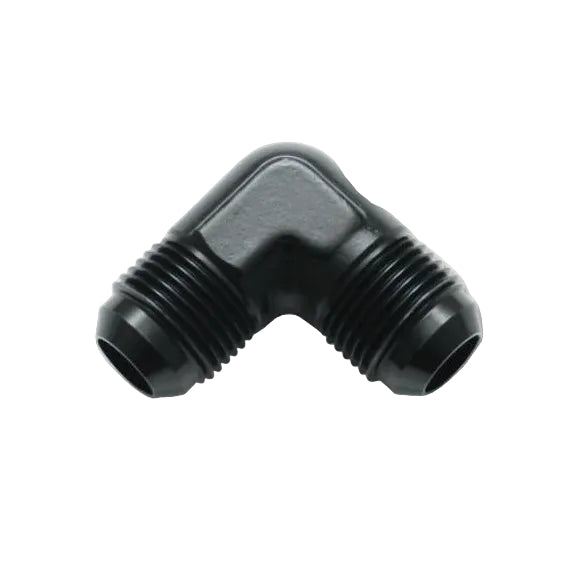

Vibrant Performance -12AN 90deg Flare Union Fitting - Aluminum
This 90-degree flare union fitting from Vibrant Performance connects -12AN hose ends to components like oil pumps fuel pumps and fuel filters in performance vehicles. Constructed from 6061-T6 aluminum it delivers smooth unrestricted flow leak-proof seals and easy assembly for custom plumbing setups. Black anodized finish adds durability and a clean look to any engine bay.
Key Features
- Lightweight 6061-T6 Aluminum: Reduces overall system weight while providing high strength and corrosion resistance for long-term reliability in demanding applications.
- Black Anodized Finish: Protects against wear and oxidation while matching blacked-out performance builds for a professional appearance.
- 90-Degree Design: Allows routing in tight spaces around engines transmissions and chassis components without flow restriction.
- Flare Union Configuration: Features 3/4-16 male to 3/4-16 female flare threads for secure anti-leak connections with standard AN hose ends.
- Smooth Flow Bore: 0.750 inch unrestricted inner diameter ensures maximum fluid transfer rates for oil fuel or coolant systems.
Product Notes
- Intended for use with Vibrant Performance or compatible -12AN hose ends and AN components.
- Available in black anodized finish only for consistent aesthetics.
- Store in a dry environment to maintain seal integrity.
Installation Notes
- Professional installation recommended.
- Use AN flare wrenches to avoid damaging threads during assembly.
- Compatible with standard -12AN plumbing hardware and O-ring seals.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Performance Vehicles | Drag Race Street Strip Custom Builds |
Why Choose Vibrant Performance?
- Established leader in motorsports plumbing with parts trusted by professional racers.
- Precision CNC-machined components built to exceed AN standards for flow and fit.
- Engineered specifically for high-pressure oil fuel and coolant systems.
Frequently Asked Questions
-
Q: What hose size fits this union?
A: Designed for -12AN hose ends with 3/4 inch inner diameter works with Vibrant braided lines and other AN-compatible hoses. -
Q: What is the material and finish?
A: Made from 6061-T6 billet aluminum with durable black anodized coating for rust protection and heat resistance. -
Q: Does it require special tools for install?
A: Standard AN flare tools suffice threads are 3/4-16 male to female torque to 30-40 ft-lbs for secure seal.
