SKU: 10613 | UPC: 690092139070

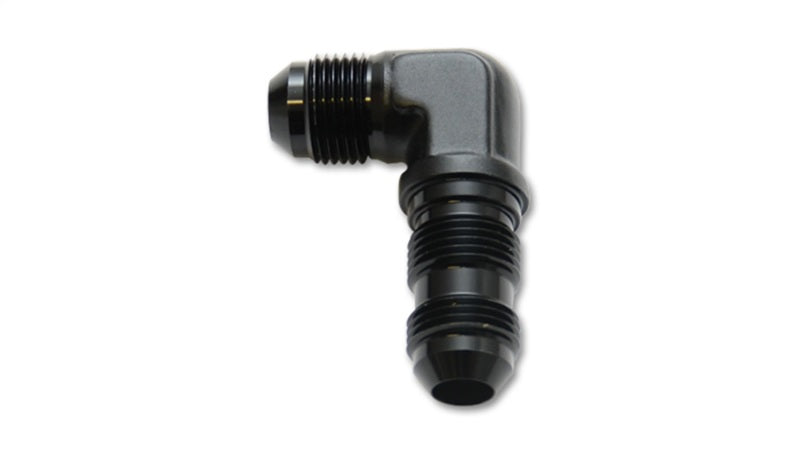

Vibrant -12AN Bulkhead Adapter 90 Degree Elbow Fitting - Anodized Black Only (Universal)
This Vibrant Performance bulkhead adapter provides a clean 90 degree elbow connection for -12AN hose ends through firewalls or panels in performance vehicles. Constructed from lightweight 6061-T6 aluminum it ensures smooth flow and leak-free seals for oil pumps fuel pumps filters and custom components. Ideal for drag racing street builds and high-performance setups requiring precise line routing.
Key Features
- 6061-T6 Aluminum Build: Delivers strength at just 0.15 lbs reducing system weight for better vehicle dynamics
- 90 Degree Elbow Design: Enables tight bends through bulkheads for simplified plumbing in confined spaces
- Anodized Black Finish: Resists corrosion and adds durable style matching blacked-out engine bays
- Anti-Leak O-Ring Seal: Creates secure pressure-tight connections preventing drips under high boost or flow
- -12AN Sizing: Handles high-volume fuel oil lines compatible with most pumps and AN hose assemblies
Product Notes
- Pair with Vibrant hose ends for seamless integration in custom fuel oil systems
- Inspect threads and panels before use to ensure proper fit
- Compact design fits 1-3/8 inch bulkhead holes standard for -12AN
Installation Notes
- Professional installation recommended.
- Torque to 25-30 ft-lbs using thread sealant on NPT side if applicable
- Includes O-ring and washer for panel mounting compatibility
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | - | All Performance Vehicles | Custom Builds |
| 1955-2024 | Chevrolet | Camaro Corvette | All |
| 1955-2024 | Ford | Mustang F-100 | All |
| 1955-2024 | Dodge | Challenger Charger | All |
Why Choose Vibrant Performance?
- Proven in NHRA IHRA racing applications for decades
- CNC machined to exact AN specifications for consistent performance
- Backed by engineering focused on flow and reliability
Frequently Asked Questions
-
Q: What vehicles does this -12AN bulkhead adapter fit?
A: Universal design works on any performance vehicle with custom oil or fuel plumbing including GM Ford Mopar muscle cars and imports -
Q: What material and finish are used?
A: 6061-T6 aluminum with hard anodized black coating for strength corrosion protection and heat resistance up to 300F -
Q: Does it include mounting hardware and what is the warranty?
A: Includes O-ring washer and hollow bolt limited lifetime warranty against defects when installed correctly
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Secure poly bag in 4 x 3 x 1.5 inch box
- Weight: 0.15 lbs net 0.4 lbs shipping
