SKU: 16970 | UPC: 690092176877

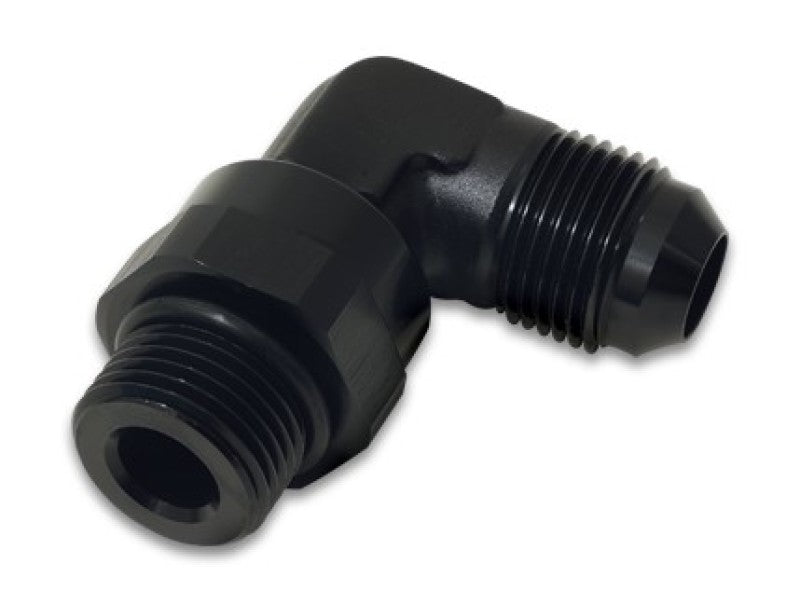

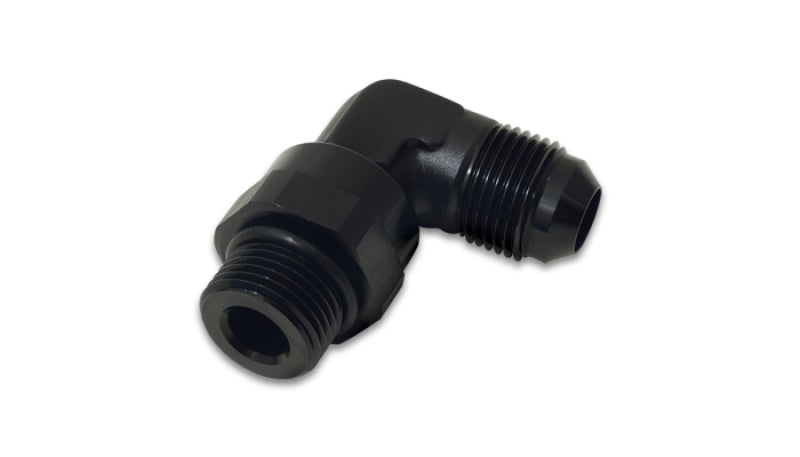

Vibrant -12AN Male Flare to Male -12AN ORB Swivel 90 Degree Adapter Fitting - Anodized Black
This precision adapter fitting connects -12AN male flare hose ends to -12AN ORB ports with a 90-degree swivel design for custom oil and fuel plumbing in race cars street performance builds and off-road vehicles. The black anodized aluminum construction delivers corrosion resistance and a clean appearance under the hood. High-flow passages support demanding fluid transfer without restrictions.
Key Features
- 90-Degree Swivel Design: Rotates freely to align hose routing and prevent kinks in tight engine bays
- -12AN Sizing: Matches large diameter AN hoses for maximum fluid volume in oil cooler and dry sump systems
- ORB O-Ring Seal: Provides reliable leak-proof connection to port fittings with included o-ring
- 6061-T6 Aluminum: Lightweight at 0.1 lbs yet strong enough for high-pressure applications up to 1000 psi
- Black Anodized Finish: Resists wear from fuels oils and heat while blending with blacked-out engine components
Product Notes
- Inspect o-ring for damage before installation to ensure proper sealing
- Clean threads thoroughly and avoid thread sealant on AN flare side
- Packaged in protective bubble wrap inside 3 x 3 x 1 inch box
Installation Notes
- Professional installation recommended.
- Torque ORB side to 40-50 ft-lbs and hand-tighten flare side plus 1/6 turn past snug
- Compatible with all SAE O-ring boss ports and standard AN-12 hose ends
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Performance Vehicles | Race/Street/Off-Road |
| 1960+ | GM/Ford/Mopar | Custom Builds | AN Oil Systems |
Why Choose Vibrant?
- Trusted by industry professionals worldwide for oil system components
- Manufactured to strict quality and reliability standards
- Complete product line covers every performance application need
Frequently Asked Questions
-
Q: Does this fitting work on specific vehicles?
A: Universal design fits any setup with -12AN flare hoses and ORB ports including dragsters muscle cars and turbo builds -
Q: What material and finish are used?
A: CNC-machined from 6061-T6 aluminum with durable black anodized coating for heat and corrosion protection -
Q: What is the warranty and install tip?
A: Backed by Vibrant limited lifetime warranty. always check alignment before final torque to avoid stress cracks
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Secure retail box 3 x 3 x 1 inches
- Weight: 0.1 lbs
