SKU: 21996 | UPC: 690092158118

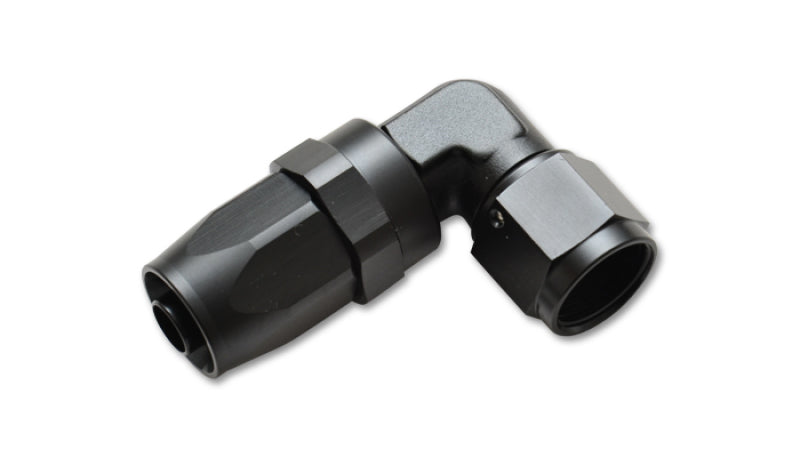

Vibrant Performance -16AN 90 Degree Elbow Forged Hose End Fitting
This Vibrant Performance fitting is a forged aluminum -16AN 90 degree elbow hose end designed for custom plumbing in performance cars trucks and race vehicles. It connects 1 inch ID braided hose for fuel oil or coolant lines with smooth flow and secure assembly. Built for reliability in high pressure applications.
Key Features
- Forged 6061-T6 Aluminum: Lightweight at 3.2 ounces with high strength to handle demanding performance plumbing
- 90 Degree -16AN Design: Provides precise bends for tight spaces while maintaining unrestricted flow
- Anti-Leak O-Ring Seal: Ensures leak-free connections under pressure for consistent performance
- Beadlock Hose Retention: Secure crimping on braided hose prevents blow-offs during operation
- Black Anodized Finish: Corrosion resistant and durable for long lasting appearance in engine bays
Product Notes
- Compatible with all Vibrant Performance braided flex hose diameters
- Reusable design allows disassembly for maintenance without damage
- Ships in protective packaging to prevent thread or finish damage
Installation Notes
- Professional installation recommended.
- Crimp with AN hose using proper tools for secure beadlock fit
- Matches standard -16AN male flare threads on pumps filters and lines
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Performance Vehicles | Race Street Rod Custom |
Why Choose Vibrant Performance?
- Proven leader in automotive plumbing components
- Precision machined for consistent quality and fit
- Engineered specifically for racing and high performance demands
Frequently Asked Questions
-
Q: What hose size fits this -16AN elbow?
A: Designed for 1 inch inner diameter braided AN hose from Vibrant Performance or compatible brands with proper crimping -
Q: What material and finish are used?
A: Forged 6061-T6 aircraft grade aluminum with black anodized coating for strength and protection -
Q: Is installation straightforward for DIY?
A: Yes with AN crimping tool and flare wrenches though professional help ensures optimal seal under high pressure
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact box 3 x 3 x 1 inches
- Weight: 0.20 lbs
