SKU: 10556 / UPC: 690092145842

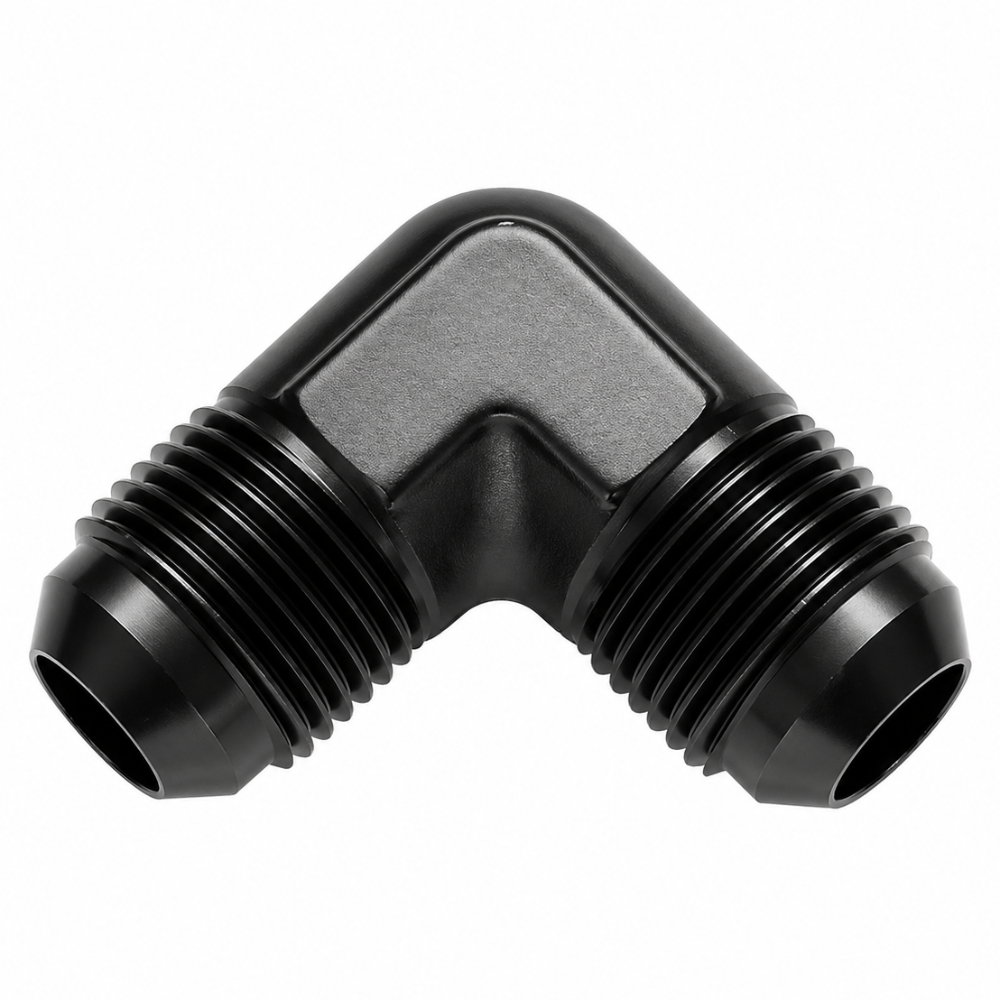

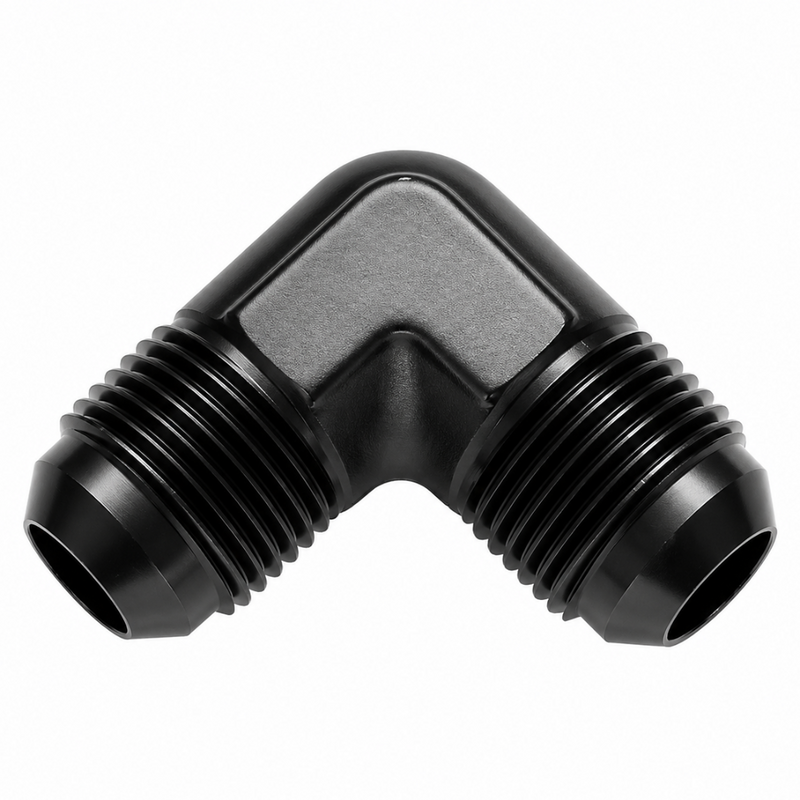

Vibrant -16AN 90-Degree Flare Union Fitting - Aluminum
The Vibran -16AN 90-Degree Flare Union Fitting is a high-quality adapter designed to connect -16AN hose ends to components with a 90-degree turn.
Machined from lightweight 6061 aluminum alloy and finished in durable anodized black, this fitting provides smooth flow, easy assembly, and a reliable anti-leak seal. It is ideal for fuel, oil, and coolant systems in performance vehicles, allowing clean and professional plumbing when space is limited or a directional change is required.
Key Features
- -16AN 90-Degree Design – Allows for clean directional changes in tight engine bays
- 6061 Aluminum Construction – Lightweight yet strong for high-performance applications
- Smooth Flow Path – Minimizes restriction for optimal fluid movement
- Anti-Leak Seal – Provides a secure, reliable connection
- Anodized Black Finish – Attractive, corrosion-resistant, and professional appearance
- Universal Compatibility – Works with most -16AN hose ends and common components
Specifications
| Detail | Value |
|---|---|
| Brand | Vibrant Performance |
| Type | -16AN 90-Degree Flare Union Fitting |
| Size | -16AN |
| Angle | 90 Degrees |
| Material | 6061 Aluminum Alloy |
| Finish | Anodized Black |
| Country of Origin | United States |
| Warranty | Vibrant Performance Limited Warranty |
Whats Included
- Vibrant -16AN 90-Degree Flare Union Fitting
Product Notes
- Designed for use with -16AN hose ends and common fuel/oil system components
- Ideal for performance builds, race cars, and custom plumbing applications
- Professional installation recommended for best results
This Part Fits
| Application | Notes |
|---|---|
| Universal AN Plumbing | Compatible with -16AN hose ends and components |
| Performance & Race Vehicles | Excellent for fuel, oil, and coolant systems in high-performance builds |
Why Choose Vibrant Performance Fittings?
- Premium 6061 aluminum construction for strength and weight savings
- Smooth flow design with reliable sealing performance
- Available in multiple anodized colors for custom builds
- Trusted by professional tuners and race teams worldwide
Frequently Asked Questions
- Q: What size hose does this fitting work with?
- A: This is a -16AN 90-degree flare union fitting designed for use with -16AN hose ends.
- Q: Is this a complete hose end or just the adapter?
- A: This is an adapter fitting used to connect -16AN hose ends to components at a 90-degree angle.
- Q: What color is this fitting?
- A: This fitting comes in anodized black.
- Q: Can I use this for fuel systems?
- A: Yes, it is suitable for fuel, oil, and coolant systems in performance applications.
Shipping & Handling
- Method: Ground UPS or FedEx
- Availability: In stock – ships same or next business day
- Packaging: Secure Vibrant Performance retail packaging
