SKU: 21316 | UPC: 690092145491

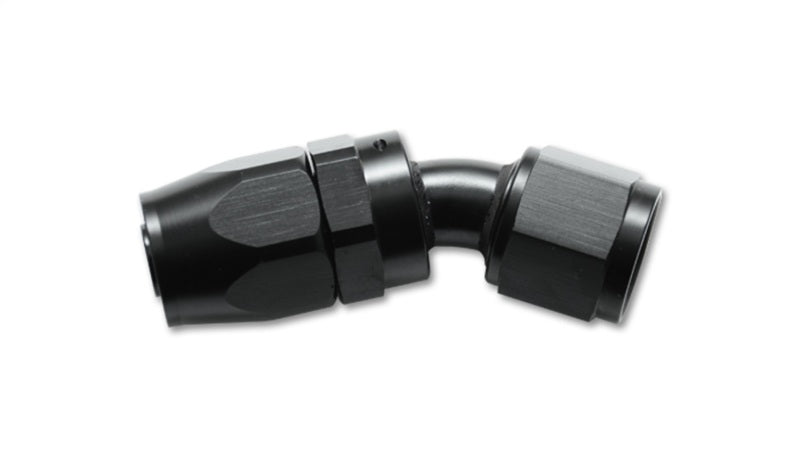

Vibrant Performance -16AN Aluminum 30 Degree Elbow Hose End Fitting 21316 - Universal
This Vibrant Performance aluminum hose end fitting serves as a 30 degree elbow connection for -16AN braided hose lines in fuel oil coolant and transmission plumbing setups. Designed for universal use across performance vehicles it ensures reliable flow and secure assembly in custom fabrication projects. The lightweight construction reduces overall system weight while maintaining durability under high-pressure conditions.
Key Features
- 6061 Aluminum Alloy: Provides corrosion resistance and strength for long-term performance in demanding automotive environments
- 30 Degree Elbow Design: Allows precise routing of hoses in tight engine bays minimizing kinks and optimizing flow paths
- Smooth Flow Interior: Reduces turbulence and pressure drop for efficient fluid transfer in high-performance systems
- Anti-Leak Seal: O-ring and precision machining deliver dependable sealing to prevent leaks during operation
- Black Anodized Finish: Protects against wear offers a professional look and matches other Vibrant components seamlessly
Product Notes
- Compatible exclusively with Vibrant Performance braided flex hose for optimal fit and performance
- Inspect fittings regularly for wear and replace as needed to maintain system integrity
- Lightweight design ships compactly with minimal packaging material
Installation Notes
- Professional installation recommended.
- Use proper AN swivel assembly tools to secure hose without twisting the braid
- Compatible with standard -16AN male flare connections and aluminum AN hardware
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All Performance Vehicles | Fuel Oil Coolant Transmission Plumbing |
Why Choose Vibrant Performance?
- Established leader in automotive plumbing and exhaust components
- Precision CNC-machined parts built for racing and street applications
- Full range of AN fittings for complete custom hose assemblies
Frequently Asked Questions
-
Q: Does this fitting work on specific vehicles?
A: This is a universal -16AN hose end fitting designed for any vehicle or application requiring custom braided line plumbing including race cars muscle cars imports and trucks -
Q: What material and finish are used?
A: Made from 6061-T6 aluminum alloy with a durable black anodized finish for corrosion protection and heat resistance -
Q: What is the warranty and install process?
A: Backed by Vibrant Performance limited warranty assembly involves inserting hose into swivel end and tightening with AN tools for secure leak-free connection
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact protective box 3.5 x 2.5 x 1.5 inches
- Weight: 0.20 lbs
