SKU: 10686 | UPC: 690092145910

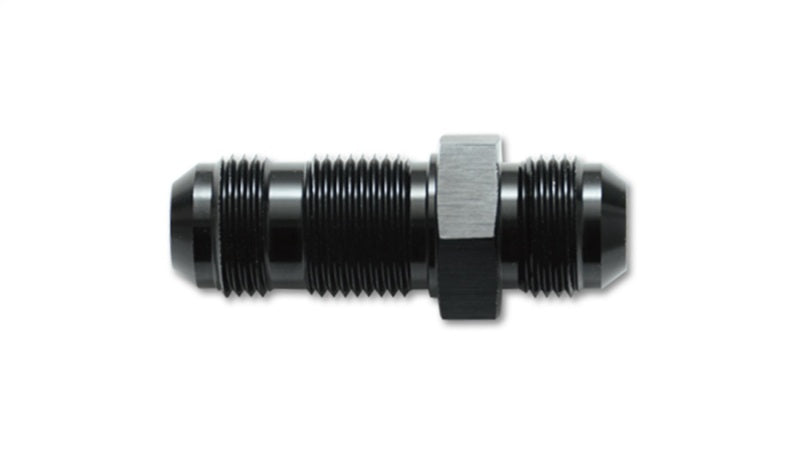

Vibrant Performance -16AN Flare Straight Bulkhead Adapter Fitting - Aluminum Black Anodized
This Vibrant Performance adapter fitting mounts through firewalls or panels for straight -16AN flare connections in custom fuel and oil plumbing setups. Constructed from 6061-T6 aluminum it delivers lightweight strength and reliable seals for race cars, street performance vehicles and off-road builds. Engineered for smooth unrestricted flow and easy assembly on oil pumps, fuel pumps, filters and bulkhead applications.
Key Features
- 6061-T6 Aluminum Construction: Provides high strength-to-weight ratio to reduce overall system mass without sacrificing durability
- Black Anodized Finish: Resists corrosion and wear while blending seamlessly with blacked-out engine bays
- -16AN Male Flare Inlet: 1-5/16"-12 UNF thread accepts standard -16AN hose ends for versatile hose integration
- Straight Bulkhead Design: Enables clean pass-through mounting with 1/2"-20 threaded body for secure panel installation
- Anti-Leak O-Ring Seal: Ensures zero leaks under high pressure for dependable fuel and oil delivery
Product Notes
- Inspect all threads and O-rings prior to installation to prevent assembly issues
- Avoid overtightening to preserve O-ring integrity and prevent thread damage
- Packaged in protective poly bag inside small cardboard box for safe transit
Installation Notes
- Professional installation recommended.
- Use flare nut wrench on AN side and backup wrench on bulkhead body during assembly
- Requires 1-1/8" hole in panel for bulkhead. includes O-ring for sealing
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Performance Vehicles | Custom Fuel/Oil Plumbing |
Why Choose Vibrant Performance?
- Proven in NHRA, NASCAR and drag racing for mission-critical plumbing
- Precision CNC-machined for exact tolerances and consistent performance
- Backed by decades of innovation in motorsports fittings
Frequently Asked Questions
-
Q: Does this fit standard -16AN hose ends?
A: Yes, the 1-5/16"-12 UNF male flare inlet accepts all industry-standard -16AN hose ends from Vibrant or other brands. -
Q: What is the material and finish?
A: Made from 6061-T6 aluminum with durable black anodized coating for corrosion resistance and heat tolerance up to 300°F. -
Q: Is there a warranty?
A: Vibrant Performance offers a limited lifetime warranty against manufacturing defects when installed and used properly.
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: 4" x 3" x 1" box
- Weight: 0.10 lbs
