SKU: 16896 | UPC: 690092159481

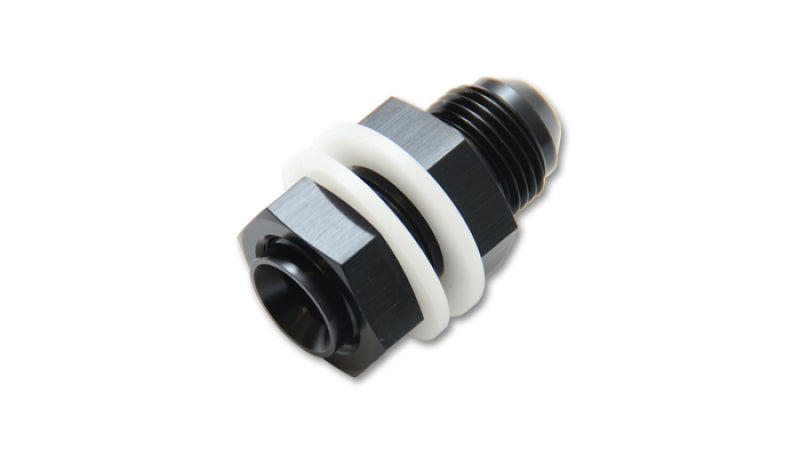

Vibrant -16AN Fuel Cell Bulkhead Adapter Fitting (with 2 PTFE Crush Washers & Nut)
Vibrant Performance fuel cell bulkhead adapter fittings connect -16AN fuel lines to fuel cells or tanks in race cars, off-road vehicles, and custom performance builds. Constructed from lightweight 6061 aluminum, these fittings mount through bulkhead walls from 0.125 to 0.250 inches thick. They deliver unrestricted fuel flow for consistent performance under high-demand conditions.
Key Features
- 6061 Aluminum Construction: Provides strength at minimal weight for better vehicle dynamics in racing applications
- Double Anodized Finish: Resists corrosion and fuels for long-lasting durability in harsh environments
- Hand Polished Surface: Delivers clean lines and professional appearance inside engine bays
- Includes Nut and 2 PTFE Washers: Creates reliable seal against leaks on various bulkhead materials
- -16AN Precision Threads: Matches standard fuel hoses without impeding flow rates up to 1200 GPH
Product Notes
- Drill 1.687 inch hole in fuel cell wall for clean installation
- Clean threads and surfaces before assembly to ensure tight seal
- Ships in protective packaging to prevent damage
Installation Notes
- Professional installation recommended.
- Torque bulkhead nut to 25-30 ft-lbs using proper flare tool
- Compatible with standard -16AN braided hose ends and bulkhead flanges
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | Universal | Fuel Cell/Tank | All |
Why Choose Vibrant Performance?
- Proven in NHRA and drag racing circuits for reliable fuel delivery
- CNC-machined components from aircraft-grade materials
- Engineered tolerances for zero leaks at high pressures
Frequently Asked Questions
-
Q: What size hole is required for installation?
A: Requires a 1.687 inch diameter hole in the fuel cell or tank wall for proper fit. -
Q: What material and finish does it have?
A: Made from 6061-T6 aluminum with black double anodizing for corrosion resistance and style. -
Q: What is the warranty coverage?
A: Backed by Vibrant Performance limited lifetime warranty against manufacturing defects.
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact box measuring 3 x 3 x 1 inches
- Weight: 0.1 lbs
