SKU: 19758 | UPC: 690092175337

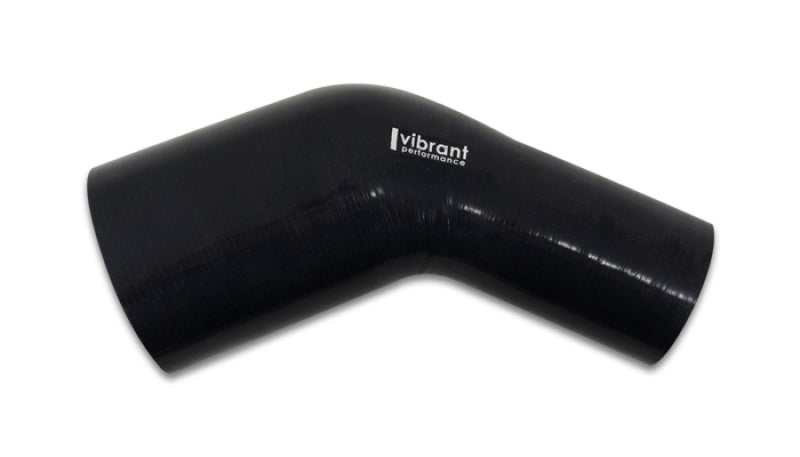

Vibrant 2.25in ID x 2.50in ID Gloss Black Silicone 45 Degree Transition Elbow - Universal Fit
This 45-degree silicone transition elbow connects 2.25-inch ID to 2.50-inch ID piping in custom air intake systems turbocharger setups and intercooler configurations. It delivers a smooth bend for unrestricted airflow and maintains a secure seal under boost pressures in performance vehicles. Built for reliability in demanding automotive applications worldwide.
Key Features
- 4-Ply Reinforced Silicone: Handles continuous temperatures up to 350°F and working pressures to 120 PSI with 4 layers of polyester fabric for strength against cracking or collapsing.
- Precise Transition Sizing: Steps from 2.25in ID to 2.50in ID over 3.25in overall length with 0.200in wall thickness for exact fit in stepped piping setups.
- 45-Degree Angle Design: Directs airflow efficiently around corners reducing turbulence in intake or charge pipe routing.
- Gloss Black Finish: Provides a durable professional look that resists fading abrasion and environmental exposure.
- Multi-Fluid Compatibility: Rated for air oil and coolant transfer suitable for intake turbo and cooling system modifications.
Product Notes
- Clamps and hardware sold separately for custom securement.
- Store in a cool dry place away from direct sunlight to preserve flexibility.
- Packaged in protective poly bag to prevent damage during transit.
Installation Notes
- Professional installation recommended.
- Clean mating surfaces and apply silicone-safe lubricant before assembly.
- Compatible with standard T-bolt or spring clamps sized to 2.25-2.75in OD.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All Models | Custom Air Intake Turbo Intercooler Piping |
Why Choose Vibrant Performance?
- Earned trust from industry professionals around the world.
- Manufactured to strict quality and reliability standards.
- Complete range for performance air oil and coolant system needs.
Frequently Asked Questions
-
Q: Does this elbow fit specific vehicles?
A: Universal design works with any setup using 2.25in to 2.50in ID piping such as turbo inlets outlets intercooler pipes or intake tracts on cars trucks and imports. -
Q: What material and temperature rating?
A: 4-ply reinforced silicone tubing rated for -65°F to 350°F continuous with burst strength exceeding 200 PSI for high-performance durability. -
Q: Are clamps included and what type?
A: Clamps not included use T-bolt clamps rated for silicone in 44-60mm range for constant tension and leak-free performance.
Shipping & Handling
- Method: UPS Ground or FedEx Ground
- Availability: In stock - ships same or next business day
- Packaging: Protective poly bag in 6 x 6 x 3 inch box
- Weight: 0.30 lbs
