SKU: 19794 | UPC: 690092172831

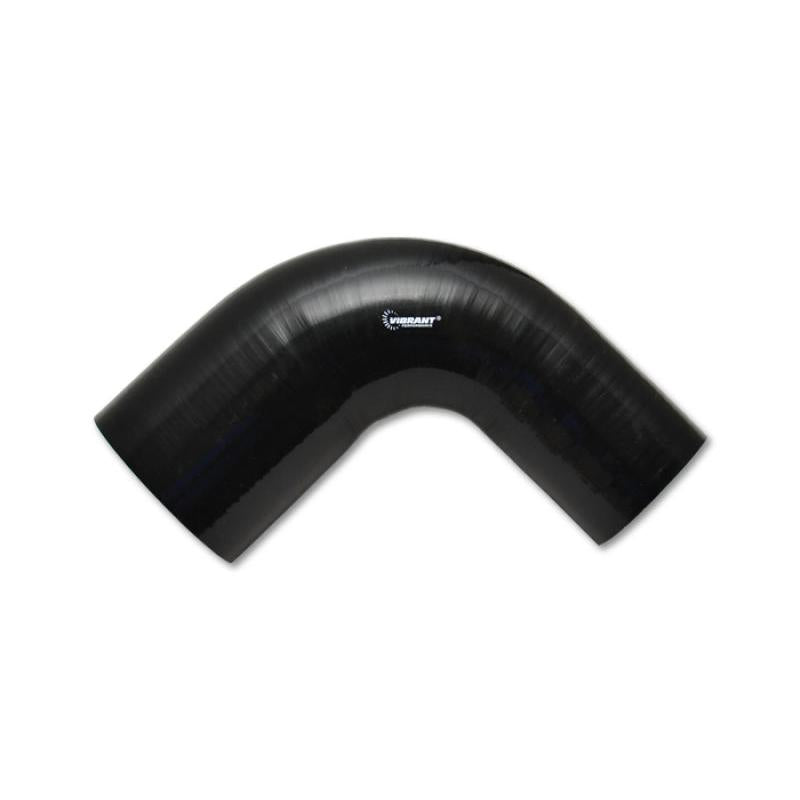

Vibrant Universal 2.75in ID x 3.5in ID x 4in Long Gloss Black Silicone 90 Degree Transition Elbow
Vibrant Performance aramid reinforced silicone 90 degree transition elbows connect 2.75 inch ID to 3.5 inch ID tubing over a compact 4 inch length for tight radius bends in custom air intake and intercooler setups. These elbows suit pressurized boost piping in turbocharged and supercharged vehicles requiring size changes in confined spaces. Aramid fabric reinforcement delivers reliable performance across -75 Degrees F to 392 Degrees F with 100 PSI maximum pressure capacity.
Key Features
- Aramid Reinforcement: High temperature fabric layers between 5mm thick silicone walls prevent separation and handle continuous flexing under boost pressure
- Temperature Range: Functions from -75 Degrees F to 392 Degrees F (-60 Degrees C to 200 Degrees C) for extreme hot and cold conditions in engine bays
- Precise Dimensions: 2.75in ID inlet to 3.5in ID outlet with 90 degree bend and 4in centerline length fits restricted routing for intercooler and intake transitions
- Gloss Black Finish: Smooth exterior resists abrasion maintains flexibility and provides clean appearance on visible plumbing
- Pressure Rating: Supports up to 100 PSI burst for secure high boost connections without failure
Product Notes
- For air and boost applications only. Not compatible with oil or fuel
- Inspect for proper clamp tension after initial heat cycles
- Compact design ships flat in protective sleeve
Installation Notes
- Professional installation recommended.
- Use stainless steel worm gear clamps sized 3in to 3.5in on clean dry surfaces
- Compatible with T-bolt clamps for high boost over 30 PSI
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Turbocharged Vehicles | Custom Intake Piping |
| Universal | All | Supercharged Vehicles | Intercooler Plumbing |
Why Choose Vibrant Performance?
- Established leader in intake and exhaust components for motorsports
- Engineered silicone compounds tested for racing durability
- Molded to exact tolerances for leak free repeatable fits
Frequently Asked Questions
-
Q: Does this elbow fit specific turbo intake kits?
A: Universal design works in any custom piping setup transitioning from 2.75in to 3.5in ID such as MAF sensor to throttle body or compressor to intercooler -
Q: What material construction resists heat best?
A: Multi layer silicone with embedded aramid fabric rated to 392 Degrees F continuous holds shape under pressure and vibration -
Q: What warranty covers this part?
A: Vibrant Performance provides one year limited warranty against manufacturing defects when installed correctly
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Protective poly bag in 8 x 6 x 4 inch box
- Weight: 0.24 lbs
