SKU: 21620 | UPC: 690092145583

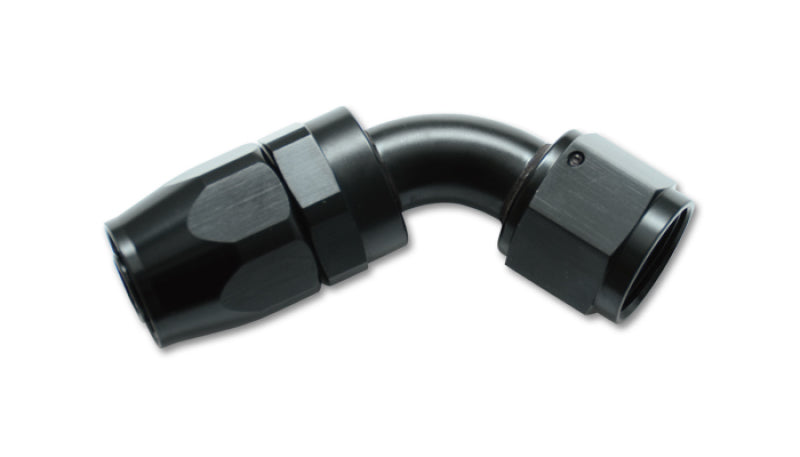

Vibrant Performance -20AN 60 Degree Elbow Hose End Fitting
Constructed from 6061 aluminum alloy, the Vibrant Performance -20AN 60 Degree Elbow Hose End Fitting offers lightweight strength for custom plumbing setups. Designed for use with braided flex hose in fuel lines, oil coolers, transmission coolers, and coolant systems on performance vehicles. Provides smooth flow paths, easy assembly, and a secure anti-leak seal for dependable operation under pressure.
Key Features
- 6061 Aluminum Alloy Build: Delivers reduced weight without sacrificing durability for high-pressure automotive applications
- Black Anodized Finish: Shields against corrosion and enhances longevity in harsh engine environments
- 60 Degree Elbow Configuration: Allows precise hose routing in compact engine bays and tight spaces
- Beadlock Hose Retention: Locks hose securely to prevent movement, leaks, or failures from vibration
- -20AN Sizing: Matches 1-1/4 inch inner diameter braided hose for seamless integration with Vibrant flex hose lines
Product Notes
- Compatible exclusively with braided AN hose for optimal performance
- Available in anodized black finish only
- Avoid cross-threading during assembly to maintain seal integrity
Installation Notes
- Professional installation recommended.
- Requires AN-specific crimping tool and proper hose preparation for secure fit.
- Works with standard beadlock assembly methods and -20AN flare seating.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Performance Vehicles | Custom AN Plumbing |
Why Choose Vibrant Performance?
- Established leader in racing and performance components.
- Machine precision ensures consistent flow and fit.
- Engineered for real-world demands in motorsports.
Frequently Asked Questions
-
Q: What hose size is compatible with this fitting?
A: Fits -20AN braided hose with 1-1/4 inch inner diameter, including all Vibrant Performance flex hose options. -
Q: What material and finish are used?
A: Made from 6061-T6 aluminum alloy with black anodized coating for corrosion resistance and style. -
Q: What tools are needed for installation?
A: AN hose crimper, flare seat tool, and torque wrench recommended for leak-free results.
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Protective box 3 x 3 x 1 inches
- Weight: 0.30 lbs
