SKU: 10737 | UPC: 690092176075

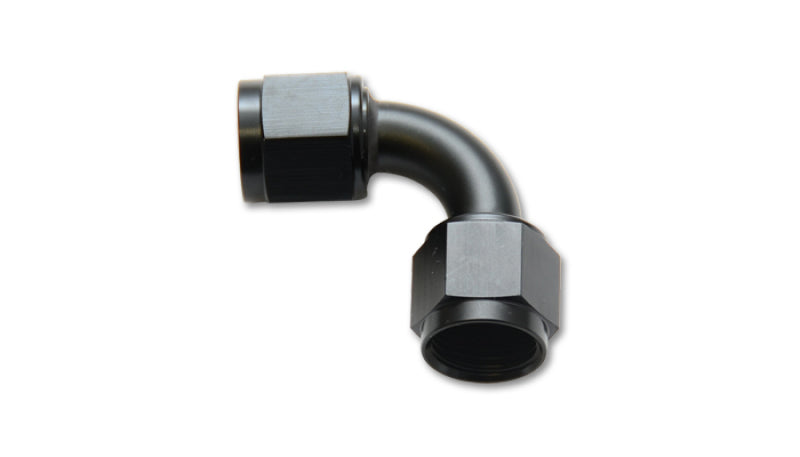

Vibrant -20AN Female 90 Degree Union Adapter (AN to AN) - Anodized Black
This Vibrant Performance adapter features two -20AN female swivel-seal ends in a 90-degree configuration ideal for tight routing in high-pressure oil fuel and coolant lines. It fits universal applications across performance vehicles race cars and custom fabrication projects. Precision engineering ensures reliable flow and leak-free connections under extreme conditions.
Key Features
- CNC Machined 6061-T6 Aluminum: Provides strength and lightweight construction rated for 1000+ PSI bursts.
- Black Anodized Finish: Resists corrosion fuel and oil exposure for long-lasting appearance and performance.
- -20AN Female Swivel Seals Both Ends: Allows easy hose assembly with full-flow 1-5/16"-12 threads and 0.938" orifice.
- 90 Degree Bend Design: Saves space in engine bays transmissions and dry sump systems.
- AN to AN Union Style: Directly joins two -20AN male hose ends without reducers.
Product Notes
- Compatible with braided hose assemblies and PTFE-lined hoses for oil fuel or nitrous plumbing.
- Inspect threads for damage before installation to maintain seal integrity.
- Packages securely to prevent shipping damage on lightweight components.
Installation Notes
- Professional installation recommended.
- Assemble dry with no thread sealant torque to 80-100 ft-lbs per AN standards.
- Compatible with all standard -20AN male inserts and hose ends.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Performance Vehicles | Race Custom Fabrication |
Why Choose Vibrant Performance?
- Trusted by racing professionals worldwide for reliable components.
- Manufactured to strict quality standards in the USA.
- Engineered for precision fit in demanding motorsport applications.
Frequently Asked Questions
-
Q: Does this adapter fit specific vehicles?
A: Designed for universal use in any setup requiring -20AN female connections including drag racing circle track and custom oiling systems. -
Q: What material and finish are used?
A: CNC machined from 6061-T6 billet aluminum with durable black anodized coating for corrosion resistance. -
Q: What is the warranty and torque spec?
A: Backed by Vibrant limited lifetime warranty torque male threads to 80-100 ft-lbs for secure seal.
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Protective bubble wrap in 5 x 4 x 3 inch box
- Weight: 0.48 lbs product 0.6 lbs shipping
