SKU: 10717 | UPC: 690092176051

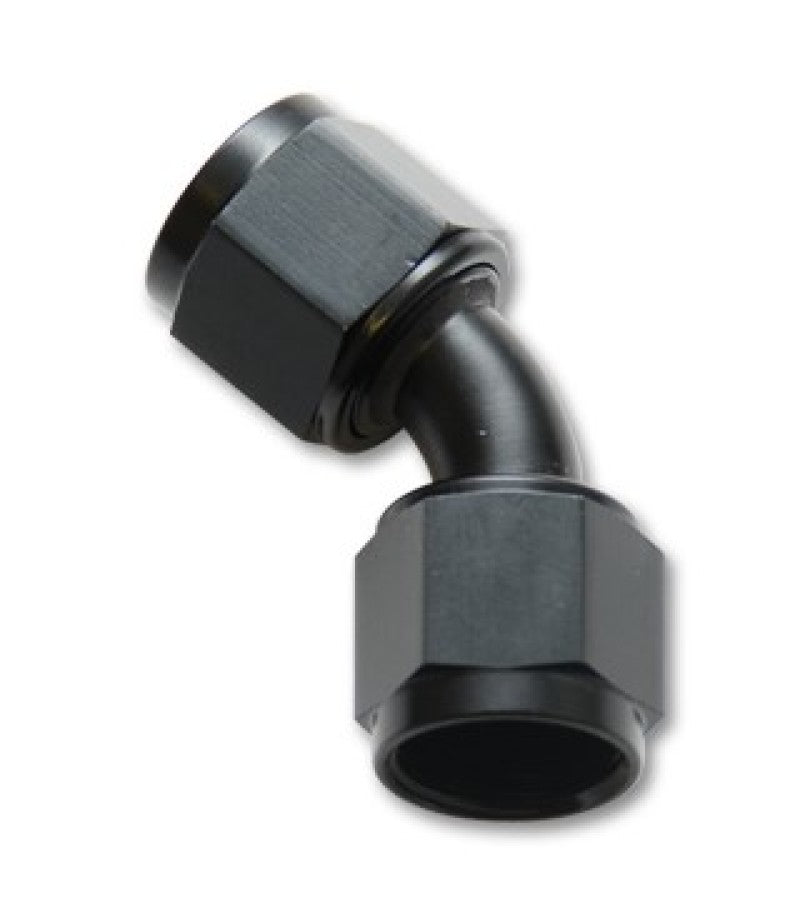

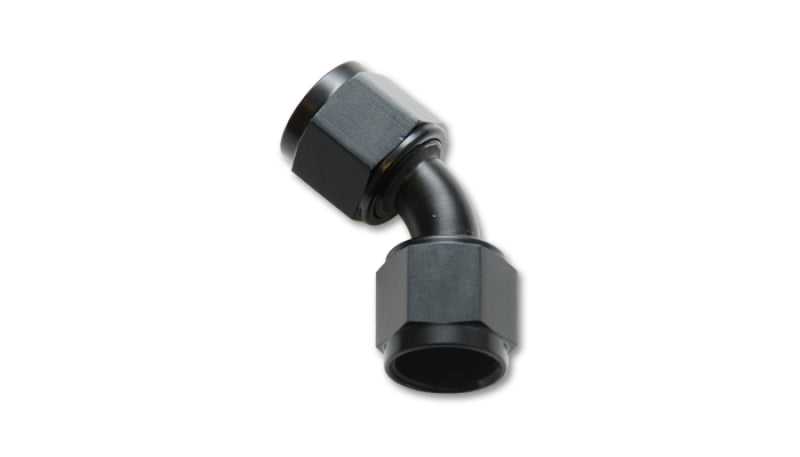

Vibrant -20AN X -20AN Female Flare Swivel 45 Deg Fitting (AN To AN) -Anodized Black Only
This 45-degree swivel fitting from Vibrant Performance connects -20AN braided hoses in oil fuel and coolant systems for automotive fabrication. Designed for racing dragsters street performance cars and custom builds it delivers reliable high-pressure flow with precise alignment. Built to handle extreme conditions in professional applications worldwide.
Key Features
- CNC Machined 6061-T6 Aluminum: Provides strength and light weight at 0.31 lbs for high-stress plumbing setups
- Black Anodized Finish: Resists corrosion and wear while matching black AN hose assemblies
- 45-Degree Swivel Seal Design: Enables flexible hose routing and reduces kinking in tight engine bays
- -20AN Female Flare Threads: Both ends accept standard -20AN male hose ends for secure dry-seal connections
- Compact Dimensions: 2.150 inch overall length 1.490 inch swivel length 2 inch wrench flats for easy install
Product Notes
- Compatible with AN braided hose assemblies only verify hose end flares before assembly
- Inspect fittings regularly for wear in high-vibration environments
- Lightweight 0.31 lb design ships in compact protective packaging
Installation Notes
- Professional installation recommended.
- Torque male hose ends to 60-65 ft-lbs using 2 inch wrench no thread sealant required
- Compatible with all standard -20AN male inverted flare hose ends and adapters
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All | -20AN Plumbing Systems |
Why Choose Vibrant Performance?
- Earned trust of industry professionals worldwide for oil system components
- Manufactured to highest quality and reliability standards
- Complete range serves as one-stop solution for performance fabrication
Frequently Asked Questions
-
Q: Does this fitting work on specific vehicles?
A: Universal design fits any vehicle or application using -20AN braided hose systems including race cars street rods and off-road builds -
Q: What material and finish are used?
A: CNC machined from 6061-T6 billet aluminum with durable black anodized coating for corrosion resistance and heat tolerance up to 300F -
Q: What is the warranty and install tip?
A: Backed by Vibrant limited lifetime warranty install dry with proper torque to prevent leaks and ensure maximum flow
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Secure retail box dimensions 3 x 3 x 1 inches
- Weight: 0.31 lbs
