SKU: 10550 | UPC: 690092145781

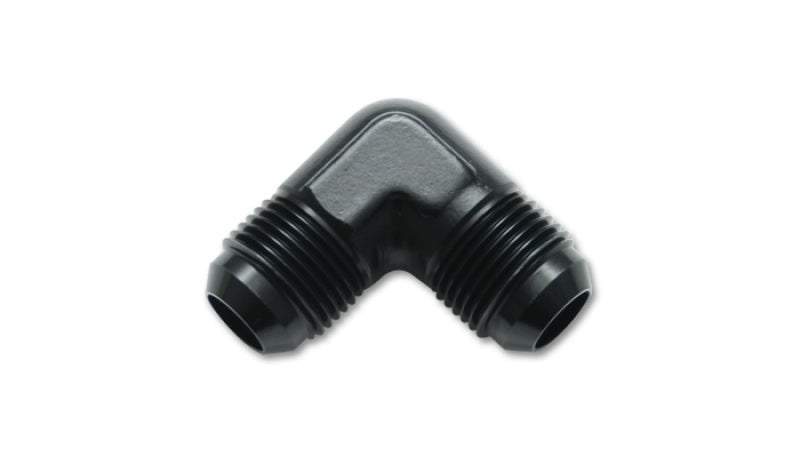

Vibrant -3AN 90deg Flare Union Fitting - Aluminum Black Anodized
This Vibrant Performance fitting joins two -3AN hose ends at a 90 degree angle for compact routing in fuel oil and coolant systems. Built for universal use in performance vehicles it connects to oil pumps fuel pumps filters and other components. Lightweight design delivers reliable flow with an anti leak seal for consistent operation under pressure.
Key Features
- 6061 Aluminum Construction: Provides strength at minimal weight for reduced system mass and better performance
- Black Anodized Finish: Resists corrosion enhances durability and matches blacked out engine bays
- 90 Degree Elbow Design: Enables tight bends in confined spaces without kinking lines
- Flare Union Connection: Securely mates two -3AN hose ends with smooth interior for unrestricted flow
- Anti Leak Seal: Precision machined seats prevent leaks even at high pressures in racing applications
Product Notes
- Inspect fittings for thread damage before installation
- Avoid overtightening to preserve sealing surfaces
- Packaged in protective bubble wrap inside small box
Installation Notes
- Professional installation recommended.
- Torque to 12-15 ft-lbs using flare fitting wrench
- Compatible with all standard -3AN hose ends and swivels
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Performance Vehicles | Fuel Oil Systems |
Why Choose Vibrant?
- Established leader in motorsports fabrication components
- CNC machined for exact tolerances and repeatability
- Backed by real world testing in drag racing circle track
Frequently Asked Questions
-
Q: What hose size fits this -3AN union?
A: Designed for 3/16 inch inner diameter hose common in -3AN fuel oil and coolant lines -
Q: What fluids can use this fitting?
A: Rated for gasoline alcohol E85 oil and coolant in performance applications -
Q: Does it require sealant during assembly?
A: No sealant needed flare seat provides dry seal contact with proper torque
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: 2.5 x 1.5 x 1 inches box
- Weight: 0.05 lbs
