SKU: 11502 | UPC: 690092157210

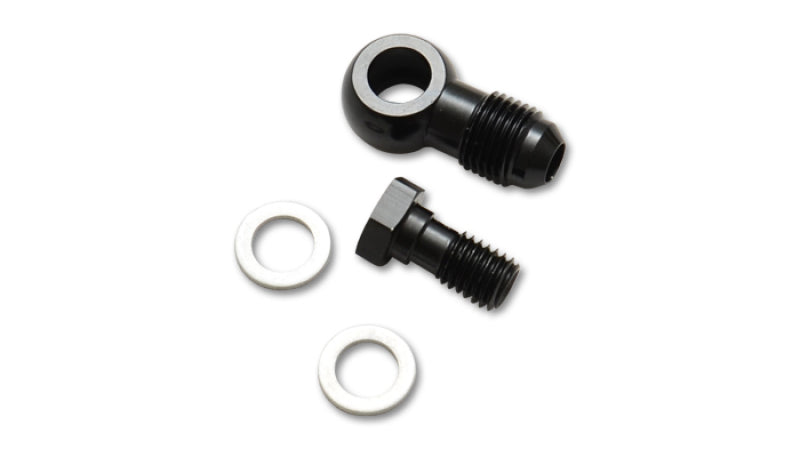

Vibrant -3AN Male Banjo Fitting 10mm x 1.0 Metric Aluminum + 2 Washers
Vibrant Performance banjo fittings connect -3AN braided fuel lines to metric fuel system components with 10mm x 1.0 threads. Crafted from 6061-T6 aluminum these fittings deliver lightweight strength and reliable sealing for fuel oil or brake systems. Black anodized finish resists corrosion in demanding performance applications.
Key Features
- 6061-T6 Aluminum Construction: Provides strength-to-weight ratio ideal for high-flow fuel systems without adding bulk
- Black Anodized Finish: Protects against wear and fuel corrosion for long-lasting appearance and function
- Precision 10mm x 1.0 Metric Male Thread: Matches OEM banjo ports on popular import engines for direct replacement
- -3AN Male Flare End: Secures to standard AN braided hose ends with O-ring or swivel nut for vibration-resistant connection
- Includes 2 Copper Crush Washers: Ensures positive leak-proof seal under pressure up to 1000 PSI
Product Notes
- Designed for fuel injection oil cooler or brake applications with M10x1.0 banjo ports
- Inspect washers for reuse and replace if deformed to maintain seal integrity
- Packages in protective bubble wrap inside small cardboard box
Installation Notes
- Professional installation recommended.
- Torque to 15-22 ft-lbs using calibrated wrench to avoid thread damage
- Compatible with all -3AN female hose ends and fittings from major brands
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1988-1991 | Honda | Civic | CRX Si (B16A) |
| 1992-2000 | Honda | Civic | Si (B16A2 D16Y8) |
| 1994-2001 | Acura | Integra | GSR Type R (B18C1 B18C5) |
| 2002-2006 | Acura | RSX | Type-S (K20A2 K20A3) |
| 2002-2011 | Honda | Civic | Si (K20Z3) |
| 1991-1994 | Nissan | 240SX | SE (S13 KA24DE) |
| 1995-1998 | Nissan | 240SX | SE S14 (SR20DET) |
| 1989-1998 | Nissan | 180SX | SR20DET |
| Universal | - | Performance Vehicles | M10x1.0 Banjo Ports |
Why Choose Vibrant Performance?
- Established leader in motorsports exhaust and plumbing components
- CNC-machined parts meet racing standards for flow and durability
- Engineered in USA for consistent fit and pressure handling
Frequently Asked Questions
-
Q: Will this fit Honda B-series or K-series fuel rails?
A: Yes it directly replaces OEM M10x1.0 banjo bolt on B16 B18 and K20 K24 fuel rails for clean AN plumbing -
Q: What is the material and finish?
A: Made from 6061-T6 aircraft-grade aluminum with black anodized coating for corrosion resistance and heat dissipation -
Q: What warranty applies and installation tips?
A: Limited lifetime warranty against manufacturing defects. Clean ports torque washers in place and check for leaks after 100 miles
Shipping & Handling
- Method: USPS First Class or UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: 3.5 x 2.5 x 0.5 inches compact box
- Weight: 0.05 lbs product 0.1 lbs shipping
