SKU: 2780 | UPC: 690092180607

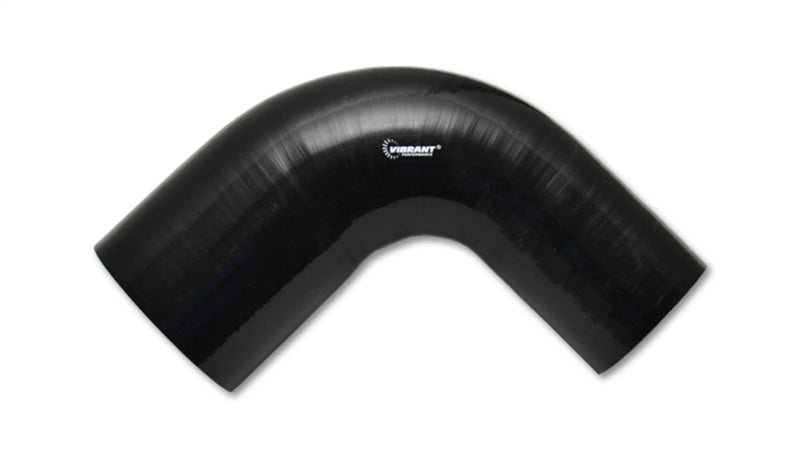

Vibrant 4 Ply Reinforced Silicone 90 Degree Transition Elbow 2in I.D. x 2.5in I.D. 90 deg. Elbow BLK - Universal
This Vibrant Performance silicone transition elbow features a 90 degree bend from 2 inch inner diameter to 2.5 inch inner diameter in black for seamless connections in custom setups. It fits universal applications in turbocharged vehicles intercooler piping and air intake tracts on cars trucks and performance builds. Hand-wrapped 4-ply aramid reinforcement ensures it holds up to boost pressures and temperature extremes from -65°F to 350°F without failure.
Key Features
- 4-Ply Aramid Reinforcement: Hand-wrapped construction resists swelling bursting or collapse under heavy duty boost and vacuum conditions
- Wide Temperature Range: Rated -65°F to 350°F for reliable operation in extreme hot or cold environments
- SAE J20 Compliant: Meets or exceeds industry standards for silicone hose quality and performance
- UV and Ozone Resistant: Maintains flexibility and strength outdoors or under hood exposure
- Transition Design: 2in to 2.5in ID 90 degree elbow with 2.36in leg length each side for tight routing in intake systems
Product Notes
- Suitable for air coolant and charge pipe service only not for oil or fuel contact manufacturer for those applications
- Centerline bend radius measures 2 inches for smooth airflow and minimal restriction
- Product weight 0.31 lbs ships in compact protective packaging
Installation Notes
- Professional installation recommended.
- Use stainless steel T-bolt clamps sized to pipe outer diameter for secure high-pressure seal
- Compatible with aluminum mandrel bent piping in 2in to 2.5in sizes heat resistant clamps required
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | - | Custom Turbo Intake Systems | All |
| 1980-2024 | Universal | Performance Vehicles | Turbocharged Supercharged |
Why Choose Vibrant Performance?
- Established leader in intake and exhaust components for motorsports
- Reinforcement exceeds requirements for durability in racing conditions
- Precision hand-wrapped design for consistent fit and flow
Frequently Asked Questions
-
Q: Will this elbow fit my turbo intake setup?
A: Yes universal design connects 2in to 2.5in pipes in most custom air intake intercooler and charge pipe applications verify pipe OD matches -
Q: What material and reinforcement does it use?
A: Black silicone hose with 4 layers of aramid fiber reinforcement for pressure and temperature resistance -
Q: What clamps work best for installation?
A: Stainless T-bolt clamps recommended secure fit over barbed or smooth pipes handles up to 50psi boost
Shipping & Handling
- Method: Ground shipping
- Availability: In stock - ships same or next business day
- Packaging: Protective poly bag 8in x 6in x 2in box
- Weight: 0.31 lbs
