SKU: 2740 | UPC: 690092119492

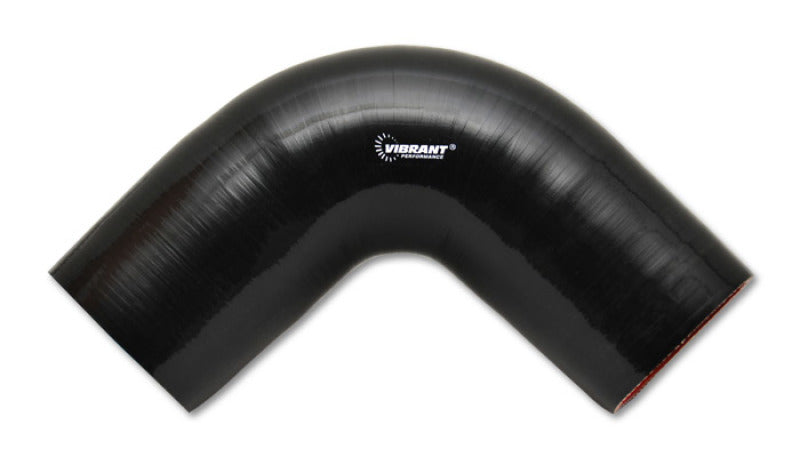

Vibrant 4 Ply Reinforced Silicone Elbow Connector - 2in I.D. - 90 deg. Elbow (BLACK)
The Vibrant Performance 2740 is a hand-wrapped 4-ply aramid reinforced silicone elbow connector with 2-inch inside diameter and 90-degree bend in black finish. Designed for universal fit in custom air intake systems, turbocharger piping, intercooler setups, and performance charge pipes on various vehicles. Delivers reliable sealing under high boost pressures and extreme heat without swelling or bursting.
Key Features
- 4-Ply Aramid Reinforcement: Wraps silicone for strength to handle heavy-duty boost pressures and prevent collapse or failure.
- Wide Temperature Range: Operates from -65°F to 350°F to maintain flexibility and integrity in cold starts or hot engine bays.
- SAE J20 Compliant: Meets or exceeds standards for coolant and air service ensuring dependable performance.
- UV and Ozone Resistant: Resists degradation from environmental exposure for extended outdoor use.
- Precise Dimensions: 2-inch ID, 2.75-inch center line length, 0.240-inch wall thickness for seamless connection to 2-inch OD pipes.
Product Notes
- Not suitable for oil or fuel service though custom hose options exist for those needs.
- Sold individually with versatile shapes available including straights and humps.
- Ideal for air and coolant applications in performance builds.
Installation Notes
- Professional installation recommended.
- Use T-bolt or worm gear clamps rated for high pressure sized to 2-inch ID not included.
- Inspect and clean mating surfaces for airtight seal. heat with hair dryer if needed for install.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Custom Air Intake Systems | 2-inch ID Turbo/Supercharger Piping |
| Universal | All | Intercooler Setups | Charge Pipes |
Why Choose Vibrant Performance?
- Established leader in motorsports-grade intake and exhaust components.
- Hand-wrapped construction ensures consistent wall thickness and reinforcement.
- Backed by engineering tested to real-world racing demands.
Frequently Asked Questions
-
Q: Will this elbow fit my turbo intake setup?
A: Yes universal 2-inch ID design connects any 2-inch OD aluminum or silicone piping in custom turbo supercharger or intercooler applications. -
Q: What material and reinforcement does it use?
A: Premium silicone body with 4-ply aramid fiber reinforcement for pressure and temperature resistance plus UV ozone protection. -
Q: What clamps work best for installation?
A: Stainless T-bolt clamps sized 2 to 2.5-inch or heavy-duty worm gears provide secure hold under boost. torque to manufacturer specs.
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Protective retail box approximately 6 x 4 x 2 inches
- Weight: 0.31 lbs
