SKU: 2747 | UPC: 690092183141

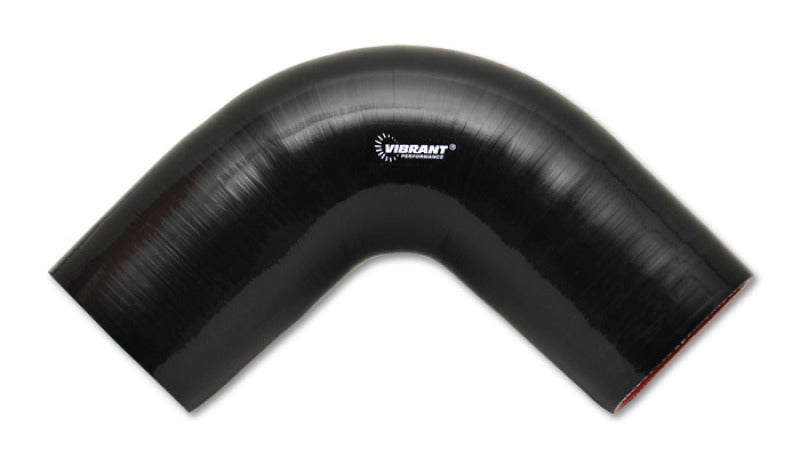

Vibrant 4 Ply Reinforced Silicone Elbow Connector - 3.25in I.D. - 90 deg. Elbow (BLACK) - Universal
This Vibrant Performance silicone elbow connector features a 3.25 inch inside diameter and 90 degree bend in black finish for custom high performance air intake setups. It fits turbocharged supercharged and modified vehicles requiring durable flexible piping solutions. Expect reliable performance under boost with resistance to extreme heat pressure and environmental exposure.
Key Features
- 4-Ply Aramid Reinforcement: Hand wrapped construction handles heavy duty pressure up to 75 psi at 75F without swelling or bursting
- Wide Temperature Range: Rated from -65 degrees F to 350 degrees F for consistent operation in all conditions
- SAE J20 Compliant: Meets or exceeds industry standards suitable for coolant service in performance applications
- UV and Ozone Resistant: Maintains flexibility and strength outdoors or under hood exposure
- 0.240 inch Wall Thickness: Provides robust durability in 3.25in ID 90 degree elbow design for precise routing
Product Notes
- Not suitable for oil or fuel service custom Vibrant hoses available for those needs
- Inspect regularly for wear in high boost setups
- Ships rolled in protective tube to prevent deformation
Installation Notes
- Professional installation recommended.
- Use high quality T-bolt or spring clamps rated for boost sold separately
- Ensure ends align flat with barbed fittings for secure seal
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All | Custom Turbo Intake Systems |
Why Choose Vibrant Performance?
- Established leader in intake and exhaust components
- Uses premium aramid reinforced silicone for reliability
- Engineered and tested for motorsport demands
Frequently Asked Questions
-
Q: Will this 3.25in elbow fit my custom intake?
A: Yes universal design works with 3.25in ID piping on turbo supercharger or naturally aspirated setups across vehicles -
Q: What material and reinforcement does it have?
A: Black silicone with 4-ply aramid fiber reinforcement 0.240in wall meets SAE J20 for coolant and air use -
Q: What is the warranty and pressure rating?
A: Lifetime warranty against manufacturing defects rated to 75 psi at 75F and -65F to 350F temperatures
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Protective cardboard tube 10in x 6in x 2in
- Weight: 0.40 lbs
