SKU: 2836 | UPC: 690092190668

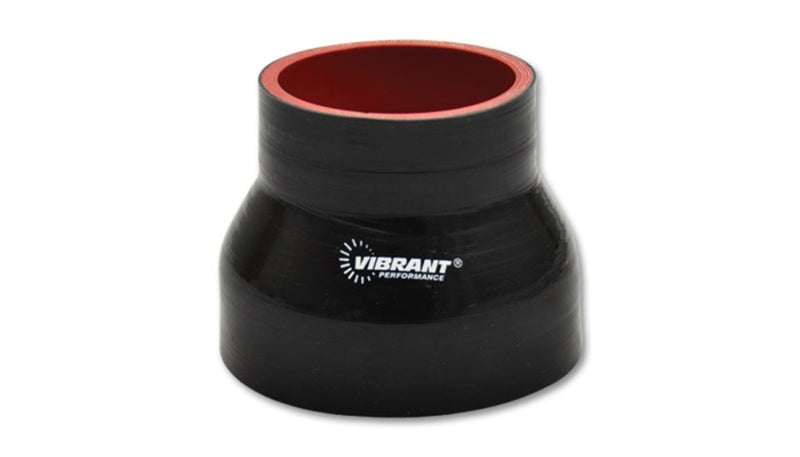

Vibrant 4 Ply Reinforced Silicone Transition Connector - 3.5in I.D. x 4.5in I.D. x 3in long (BLACK)
Upgrade your turbocharger piping intercooler connections or high boost air intake with this Vibrant Performance transition coupler connecting 3.5-inch to 4.5-inch pipes. Hand-wrapped 4-ply aramid reinforced silicone handles extreme pressures without swelling or bursting in custom setups across drag racing street performance and motorsports builds. Rated from -65°F to 350°F it meets SAE J20 standards for reliable boost retention.
Key Features
- 4-Ply Aramid Reinforcement: Withstands heavy duty boost pressures up to 100 psi and prevents collapse under vacuum for consistent airflow
- Wide Temperature Range: Operates from -65°F to 350°F resisting heat soak cold starts and track abuse
- SAE J20 Compliant: Exceeds industry standards for coolant compatible hoses ensuring vibration resistance and longevity
- UV and Ozone Resistant: Maintains flexibility and shape in outdoor engine bays exposed to weather and chemicals
- Precise Transition Design: Smooth 3-inch length taper from 3.5in ID to 4.5in ID eliminates turbulence in intercooler piping and intake tracts
Product Notes
- Suitable for air boost coolant and vacuum applications in performance engines
- Not designed for oil or fuel contact custom Vibrant hoses available for those needs
- Store flat to preserve shape arrives rolled in protective sleeve
Installation Notes
- Professional installation recommended.
- Use stainless steel T-bolt clamps sized 3.25-3.75in for small end and 4.25-4.75in for large end
- Slide over clean barbed aluminum pipes heat with hair dryer if needed for tight fit
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All | Turbo Intercooler Air Intake Piping Custom Builds |
Why Choose Vibrant Performance?
- Proven in NHRA drag racing and SEMA builds for intake hose reliability
- Hand-wrapped in USA with premium silicone for consistent wall thickness
- Engineered reinforcements match real world boost and heat demands
Frequently Asked Questions
-
Q: Will this coupler work on my turbo setup?
A: Yes it fits any custom piping needing a 3.5in to 4.5in step up common in large frame turbos intercoolers and velocity stacks -
Q: What reinforcement does it have?
A: Four layers of aramid fiber embedded in high temp silicone for burst resistance over 100 psi and full vacuum hold -
Q: Are clamps included?
A: No clamps sold separately secure with heavy duty stainless clamps for 50+ psi applications
Shipping & Handling
- Method: UPS Ground USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Protective poly sleeve box dimensions 7.75 x 7.5 x 3.5 inches
- Weight: 0.55 lbs
