SKU: 28204 | UPC: 690092171629

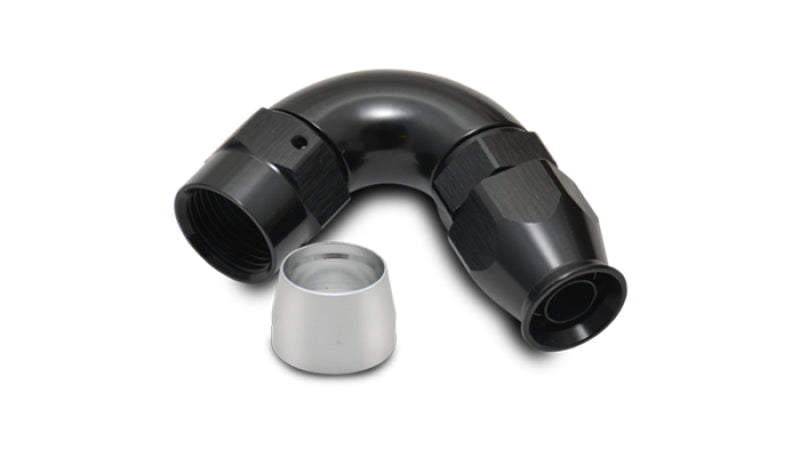

Vibrant Performance -4AN 120 Degree Hose End Fitting for PTFE Lined Hose
The Vibrant Performance -4AN 120 Degree Hose End Fitting connects seamlessly to 1/4-inch PTFE lined hose for custom oil and fuel lines in performance vehicles. This universal component suits drag cars, circle track racers, and street performance builds requiring tight bends. It delivers secure, high-flow performance under extreme pressures up to 1000 PSI and temperatures to 300°F.
Key Features
- 120 Degree Bend: Allows precise hose routing in tight engine bays and chassis areas for cleaner installations
- PTFE Hose Compatibility: Exclusive design grips PTFE lined hose securely without crimping, resisting heat and chemicals
- 6061-T6 Aluminum Construction: Lightweight at 0.05 lbs with black anodized finish for corrosion resistance and durability
- Swivel Seat Design: Enables 360-degree rotation for easy alignment and reusable assembly
- AN-4 Flare (7/16-20 Thread): Provides leak-proof seals in high-vibration environments with standard AN hardware
Product Notes
- Pair with Vibrant PTFE hose part 28200 series for best results
- Inspect o-rings regularly to maintain peak performance
- Individual fitting, order multiples for complete assemblies
Installation Notes
- Professional installation recommended.
- Use Vibrant swaging tool set for PTFE hose attachment
- Torque flare nut to 15-20 ft-lbs and ensure proper flare seating
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | Universal | Performance Vehicles | Custom AN Systems |
Why Choose Vibrant Performance?
- Earned trust of racing professionals worldwide
- Built to exacting quality and reliability standards
- Complete range covers all fabrication and plumbing needs
Frequently Asked Questions
-
Q: What size hose does this fitting work with?
A: Designed for -4AN (1/4-inch inner diameter) PTFE lined hose like Vibrant 28201 or 28202 -
Q: What is the material and finish?
A: Machined from 6061-T6 aluminum with durable black anodized coating for long-term protection -
Q: Is installation straightforward?
A: Requires swaging tool, but swivel design simplifies adjustments. Professional install advised for high-pressure use
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Protective individual box, 3 x 3 x 1 inches
- Weight: 0.05 lbs
