SKU: 21904 | UPC: 690092128388

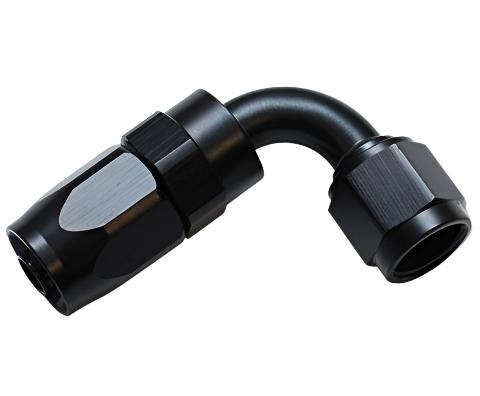

Vibrant Performance -4AN 90 Degree Elbow Hose End Fitting
This 90 degree elbow hose end fitting from Vibrant Performance connects -4AN braided hose for custom plumbing in fuel oil and coolant systems on any performance vehicle. Machined from lightweight 6061 aluminum it ensures smooth unrestricted flow and a reliable anti-leak O-ring seal. The black anodized finish resists corrosion in harsh engine bay conditions.
Key Features
- 6061 Aluminum Alloy: Provides strength and low weight at just 1.3 ounces for reduced plumbing system mass without sacrificing durability
- Black Anodized Finish: Protects against corrosion and wear while delivering a professional appearance that matches black braided hose setups
- 90 Degree Elbow Design: Allows precise routing in tight spaces around engines transmissions and chassis components
- Anti-Leak O-Ring Seal: Creates a secure reusable connection that prevents leaks under high pressure and vibration
- Swivel Hose End: Simplifies assembly and allows rotation for exact alignment during installation with all Vibrant braided flex hose
Product Notes
- Compatible with all Vibrant Performance braided stainless steel flex hose in -4AN size
- Thread size is 7/16 inch -20 SAE standard for direct AN connection
- Intended for custom fabrication in performance automotive plumbing
Installation Notes
- Professional installation recommended.
- Insert hose fully into fitting and tighten swivel nut to 10-12 ft-lbs torque
- Compatible with standard AN male adapters and hose clamps
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All Models | All Submodels |
Why Choose Vibrant Performance?
- Established leader in performance plumbing and exhaust components
- Precision CNC-machined parts built for racing and street reliability
- Full range of AN fittings for complete custom hose assemblies
Frequently Asked Questions
-
Q: What hose size does this fitting work with?
A: Designed for -4AN braided hose with 1/4 inch inner diameter commonly used in fuel oil and coolant lines -
Q: What material and finish are used?
A: Made from 6061-T6 aluminum with durable black anodized coating available in black only -
Q: Is installation straightforward?
A: Yes the swivel design allows easy hose insertion and rotation for alignment torque to spec for secure fit
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Protective plastic bag in 3 x 2 x 1 inch box
- Weight: 0.1 lbs
