SKU: 28904 | UPC: 690092171582

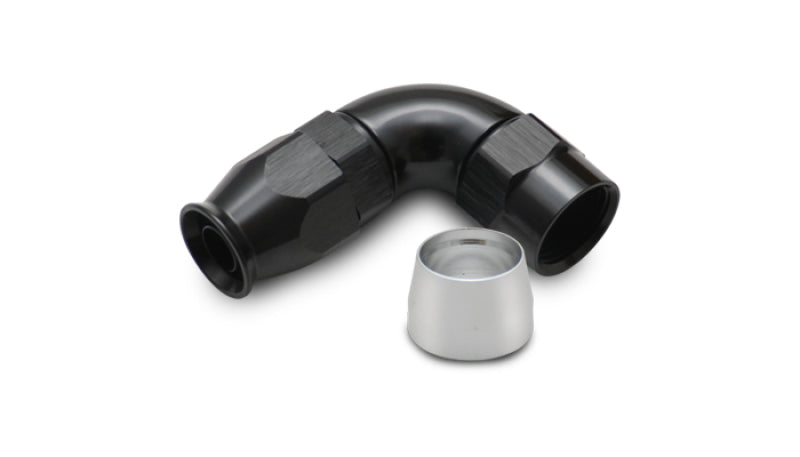

Vibrant Performance -4AN 90 Degree Hose End Fitting for PTFE Lined Hose - Universal
This Vibrant Performance hose end fitting creates secure 90-degree connections for PTFE lined hoses in high-pressure oil fuel and coolant lines. It fits any vehicle setup using -4AN PTFE hose including race cars street performance builds and custom fabrication projects. Expect leak-free seals high flow rates and durability under extreme conditions from this reusable aluminum component.
Key Features
- CNC Machined Aluminum: Built from 6061-T6 aluminum for lightweight strength and resistance to high pressures up to 1000 PSI.
- Black Anodized Finish: Provides corrosion resistance and a sleek look that withstands heat engine chemicals and road debris.
- 90-Degree Elbow Design: Enables tight routing in crowded engine bays without kinking hoses or restricting flow.
- PTFE Hose Compatibility: Exclusive match for Vibrant UltraPTFE hose with 1/4-inch ID and 1/2-inch OD ensuring low-friction high-flow performance.
- Reusable Swivel Seal: One-piece design with O-ring seal allows multiple installations while maintaining zero leaks and full AN specification compliance.
Product Notes
- Thread size is 7/16-20 AN male for standard AN connections.
- Intended for oil fuel and coolant applications only not rubber or nylon braided hose.
- Small package measures approximately 3 x 2 x 1 inches for easy storage.
Installation Notes
- Professional installation recommended.
- Tighten with 3/4-inch AN wrench to 20-25 ft-lbs to prevent thread damage.
- Requires matching -4AN PTFE hose and standard AN adapters or swivels.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All | PTFE Lined Hose Systems |
Why Choose Vibrant Performance?
- Earned trust of industry professionals worldwide for oil system reliability.
- Manufactured to strict quality standards for consistent performance.
- Complete range of fittings and hoses simplifies fabrication projects.
Frequently Asked Questions
-
Q: What type of hose is compatible with this fitting?
A: Designed for -4AN PTFE lined hoses like Vibrant UltraPTFE with 1/4-inch inner diameter and 1/2-inch outer diameter. Not compatible with rubber hose. -
Q: What material and finish does it have?
A: CNC machined from 6061-T6 aluminum with black anodized finish for corrosion resistance and durability in harsh environments. -
Q: Does it come with a warranty?
A: Covered under Vibrant Performance limited lifetime warranty against manufacturing defects when installed correctly.
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact box approximately 3 x 2 x 1 inches
- Weight: 0.05 lbs
