SKU: 11240 | UPC: 690092156879

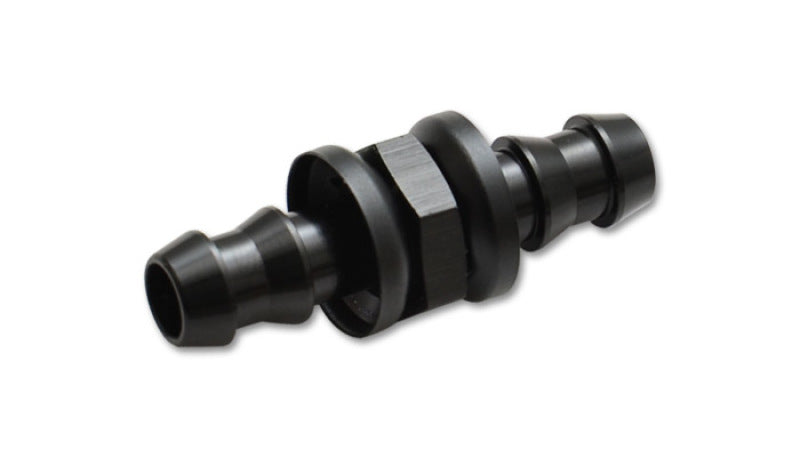

Vibrant Performance -4AN Barbed Union Fitting
Vibrant Performance adapter fittings like the -4AN Barbed Union Fitting feature lightweight 6061 aluminum construction for performance fuel and oil systems. This union connects 1/4-inch ID hoses directly to oil pumps fuel pumps fuel filters and other components in custom automotive setups. It provides smooth flow easy assembly and a reliable anti-leak seal in black anodized finish only.
Key Features
- 6061 Aluminum Alloy: Lightweight design reduces vehicle weight while delivering strength for high-pressure applications up to 1000 PSI
- Black Anodized Finish: Protects against corrosion and wear for long-lasting performance in harsh engine bay environments
- Smooth Bore Flow Path: 0.250-inch inside diameter minimizes turbulence and pressure drop for efficient fluid transfer
- Push-On Barbed Ends: 1/4-inch ID barbs on both sides allow quick secure hose connections without special tools
- Anti-Leak Seal Design: Precision machined O-ring compatible for zero leaks under vibration and thermal cycling
Product Notes
- Intended for use with braided AN hose or performance rubber hose using worm gear clamps
- Pressure rated for gasoline alcohol E85 and motor oils
- Compact size fits tight spaces around pumps and filters
Installation Notes
- Professional installation recommended.
- Slide hose over barb and secure with stainless steel hose clamps torqued to 20 in-lbs
- Compatible with Vibrant hose ends and standard -4AN plumbing components
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Fabrication Fuel Oil Systems | All |
| 1960-2024 | Various | Performance Vehicles | Custom Builds |
Why Choose Vibrant Performance?
- Established leader in motorsports fittings used in drag racing circle track and street performance
- Consistent quality from CNC machining and rigorous testing
- Exact tolerances ensure reliable fit in demanding AN systems
Frequently Asked Questions
-
Q: What hose size fits this union?
A: Designed for 1/4-inch ID hose common in -4AN fuel and oil lines including braided and rubber types -
Q: What is the material and finish?
A: Constructed from 6061-T6 aluminum alloy with durable black anodized coating for corrosion resistance -
Q: What warranty applies?
A: Backed by Vibrant Performance limited lifetime warranty against manufacturing defects when installed correctly
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Protective poly bag in 3 x 2 x 1 inch box
- Weight: 0.05 lbs
