SKU: 10609 | UPC: 690092150235

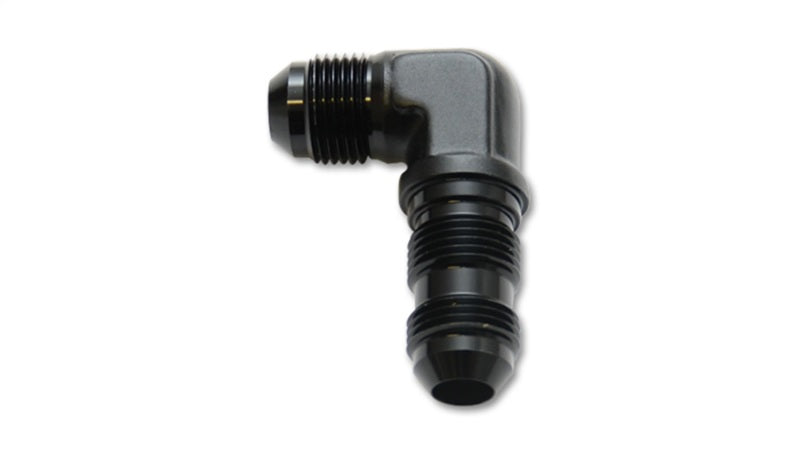

Vibrant Performance -4AN Bulkhead Adapter 90 Degree Elbow Fitting - Anodized Black - Universal
The Vibrant Performance -4AN Bulkhead Adapter 90 Degree Elbow Fitting connects hose ends through panels for custom fuel and oil line routing in performance vehicles. Made from 6061 aluminum alloy it delivers smooth flow and leak-free seals with oil pumps fuel pumps filters and other components. This anodized black fitting supports reliable plumbing in race cars street builds and off-road setups.
Key Features
- 6061 Aluminum Alloy Construction: Delivers lightweight strength at 0.10 lbs for reduced vehicle weight without sacrificing durability
- Anodized Black Finish: Provides corrosion resistance and matches blacked-out engine bays for a clean professional look
- 90 Degree Elbow Design: Enables tight routing around firewalls bulkheads and chassis components for simplified installations
- Anti-Leak O-Ring Seal: Ensures secure sealing through panels up to 0.375 inches thick with included washer and nut
- Smooth Bore Flow Path: Minimizes turbulence and pressure drop for consistent fuel and oil delivery in high-demand systems
Product Notes
- Fits Vibrant Performance hose ends and most AN-compatible components like Mocal Aeromotive and Peterson pumps
- Anodized black finish only available color for consistent aesthetics
- Compact design measures 1.75 inches overall length for easy panel mounting
Installation Notes
- Professional installation recommended.
- Drill 0.812 inch hole in panel for bulkhead threading and apply thread sealant to male AN side
- Compatible with standard -4AN hose ends and female swivel connections
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | - | Performance Vehicles | All Custom Builds |
| 1960-2024 | Universal | Fuel Oil Systems | Race Street Off-Road |
Why Choose Vibrant Performance?
- Established leader in motorsports plumbing components
- Precision CNC-machined for exact tolerances
- Proven reliability in drag racing circle track and drifting
Frequently Asked Questions
-
Q: What AN size hose ends does this fitting accept?
A: Designed for -4AN male hose ends with 7/16-20 thread ensuring secure connection to Vibrant and compatible braided lines -
Q: What material and finish are used?
A: Billet 6061-T6 aluminum with Type II anodized black finish for corrosion protection and heat resistance up to 300°F -
Q: What is the warranty and installation support?
A: Backed by Vibrant Performance limited warranty includes o-ring and hardware torque to 15-20 ft-lbs for best results
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Secure retail box 3 x 3 x 1 inches
- Weight: 0.10 lbs
