SKU: 16824 | UPC: 690092176990

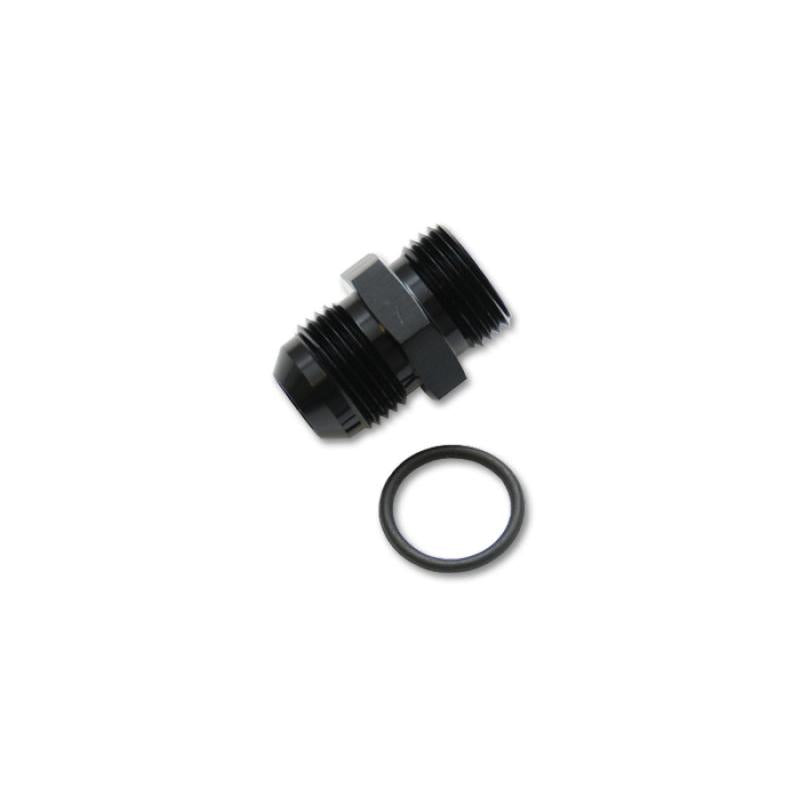

Vibrant Performance -6 Male AN Flare x -3 Male ORB Straight Adapter w/O-Ring 1960-2024 Chevrolet Camaro Corvette Ford Mustang
This straight adapter connects -6 AN male flare fittings to -3 male ORB ports on oil pumps fuel pumps and fuel filters for Chevrolet Camaro LS swaps Corvette C5 C6 C7 and Ford Mustang Coyote 5.0 plus custom dry sump systems. Built from 6061-T6 aluminum alloy with black anodized finish it handles high-pressure fuel and oil systems up to 1000 PSI with smooth unrestricted flow. The included O-ring creates a reliable leak-free seal for custom fabrication and performance builds.
Key Features
- 6061-T6 Aluminum Alloy Construction: Lightweight durable material resists corrosion for reliable long-term use in race and street applications
- Black Anodized Finish: Shields against wear improves aesthetics and preserves full flow in demanding environments
- Included O-Ring Seal: Ensures leak-proof connection on ORB ports to contain fluids under extreme pressure
- Straight Design: Simplifies hose routing in confined spaces for easy installs on pumps and filters
- Precise Thread Specs: -6 AN male flare 9/16-18 x -3 ORB male 1/2-20 for exact compatibility and secure engagement
Product Notes
- Inspect O-ring for damage before installation to maintain seal integrity
- Clean threads thoroughly for optimal engagement and performance
- Packaged in protective sleeve to prevent shipping damage
Installation Notes
- Professional installation recommended.
- Apply light oil to O-ring prior to assembly to ease insertion
- Torque AN flare to 15-20 ft-lbs and ORB to 10-12 ft-lbs per SAE standards
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | - | - | Fits most oil pumps fuel pumps fuel filters |
| 1960-2024 | Chevrolet | Camaro | LS Swap ZL1 SS |
| 1960-2024 | Chevrolet | Corvette | C5 C6 C7 Z06 |
| 1960-2024 | Ford | Mustang | Coyote 5.0 GT |
| Universal | - | Custom Builds | Dry Sump Systems |
Why Choose Vibrant Performance?
- Trusted brand in motorsports with fittings used in NHRA drag racing
- CNC machined from billet aluminum for consistent quality
- Engineered for maximum flow and pressure handling up to 1000 PSI
Frequently Asked Questions
-
Q: Does this adapter fit standard fuel pumps like Aeromotive or Walbro?
A: Yes it connects -6 AN lines to -3 ORB ports found on many Aeromotive regulators Walbro pumps and similar components -
Q: What material and finish are used?
A: Made from 6061-T6 aluminum alloy with durable black anodized coating for corrosion resistance -
Q: Is installation straightforward for DIY?
A: Simple thread-in design with O-ring but use proper torque specs and consider professional help for high-pressure systems
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Protective plastic bag in 2.5 x 1.75 x 1 inch box
- Weight: 0.05 lbs product 0.10 lbs shipping
