SKU: 21986 | UPC: 690092158071

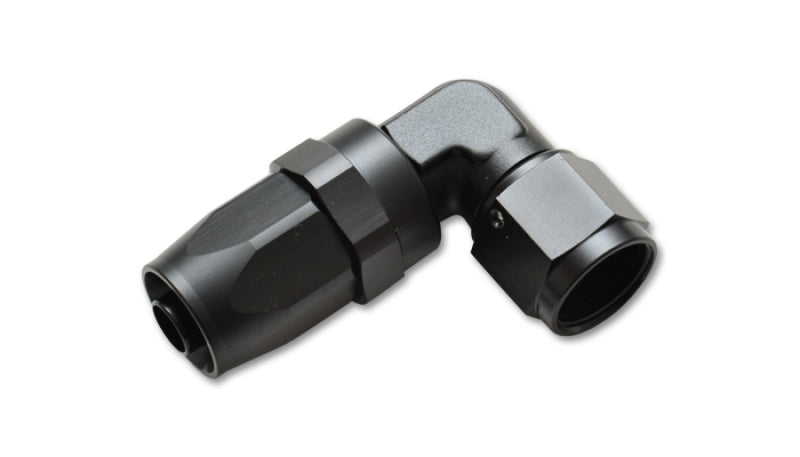

Vibrant -6AN 90 Degree Elbow Forged Hose End Fitting
Upgrade your fuel oil coolant or transmission lines with the Vibrant Performance -6AN 90 degree elbow forged hose end fitting crafted from 6061 aluminum alloy. This universal fitting works with all Vibrant braided flex hoses delivering reliable connections in high-performance automotive applications. It ensures smooth unrestricted flow and a secure anti-leak O-ring seal for consistent operation under pressure.
Key Features
- Forged 6061 Aluminum Alloy: Provides durability and low weight at just 0.05 lbs reducing overall system mass without sacrificing strength.
- -6AN Sizing: Standard 9/16-18 thread fits -6AN braided hoses with 3/8 inch inner diameter for precise hose clamping and swivel action.
- 90 Degree Elbow Design: Enables tight radius routing around engine components and chassis saving space in crowded engine bays.
- Black Anodized Finish: Resists corrosion fuel and oil exposure while giving a professional blacked-out look.
- Anti-Leak O-Ring Seal: Creates a reliable barrier against leaks during assembly supporting high-pressure demands up to 1000 PSI.
Product Notes
- Pair with Vibrant Performance braided stainless steel hoses for complete plumbing kits.
- Inspect O-ring before installation and replace if damaged for long-term reliability.
- Packaged in a compact 3 x 2 x 1 inch box with 0.05 lbs shipping weight.
Installation Notes
- Professional installation recommended.
- Assemble with compatible -6AN braided hose using provided O-ring lubricate with assembly fluid.
- Torque AN threads to 20-25 ft-lbs verify hose clamp security no additional hardware needed.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Performance Vehicles | Fuel Oil Coolant Systems |
Why Choose Vibrant Performance?
- Established leader in performance plumbing and exhaust components trusted by racers worldwide.
- Precision-forged fittings built for high-flow reliability in demanding motorsport conditions.
- Full range of AN sizes and angles available for custom fabrication projects.
Frequently Asked Questions
-
Q: Does this fitting work on specific vehicles?
A: This is a universal -6AN hose end designed for any vehicle with braided performance plumbing including imports domestics muscle cars and race builds. -
Q: What material and finish are used?
A: Constructed from forged 6061-T6 aluminum alloy with durable black anodized coating for corrosion resistance and heat tolerance. -
Q: What is the warranty and install process?
A: Backed by Vibrant Performance limited warranty assemble by pushing onto hose barbs secure O-ring and thread onto mating AN fitting.
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Protective plastic bag in 3 x 2 x 1 inch cardboard box
- Weight: 0.05 lbs
