SKU: 21306 | UPC: 690092145453

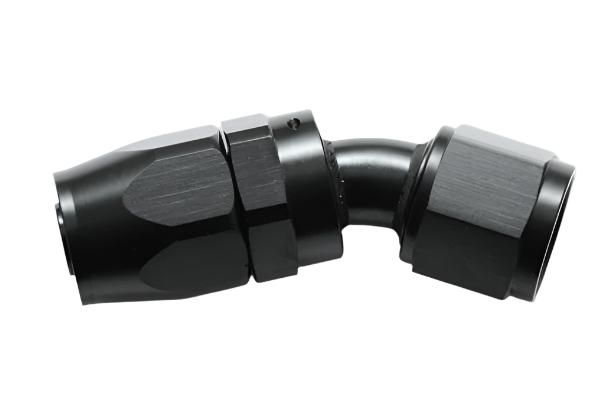

Vibrant -6AN AL 30 Degree Elbow Hose End Fitting
This Vibrant Performance hose end fitting connects -6AN braided flex hose with a 30 degree elbow for custom routing in fuel oil and coolant lines. Designed for performance vehicles including race cars trucks and street builds it delivers smooth flow and leak-free reliability. Constructed from 6061 aluminum alloy it weighs just 0.1 lbs for reduced system weight.
Key Features
- 6061 Aluminum Alloy: Lightweight durable material resists corrosion and handles high-pressure plumbing demands
- 30 Degree Elbow Design: Enables tight bends and precise hose routing in confined engine bays
- Anti-Leak Seal: Provides secure O-ring seal to prevent leaks under extreme conditions
- Smooth Internal Flow: Beadless design reduces turbulence for unrestricted fluid transfer
- Black Anodized Finish: Protects against wear and delivers a professional race-ready look
Product Notes
- Compatible with all Vibrant Performance braided flex hose sizes
- Reusable design allows easy disassembly and reassembly
- Thread size 9/16-18 SAE for standard -6AN connections
Installation Notes
- Professional installation recommended.
- Torque to 20-25 ft-lbs using AN flare nut wrench to avoid damage
- Works with standard AN swaged hose ends and adapters
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Performance Vehicles | Custom AN Plumbing |
Why Choose Vibrant Performance?
- Trusted by racers for proven durability in high-stakes applications
- Precision machined for consistent fit and flow every time
- Full line of matching hose and fittings for complete systems
Frequently Asked Questions
-
Q: What hose size does this fitting work with?
A: Designed for -6AN inner diameter braided hose including all Vibrant Performance flex hose options -
Q: What is the material and finish?
A: Machined from 6061-T6 aluminum with durable black anodized coating for corrosion resistance -
Q: Is installation straightforward?
A: Yes with basic AN tools. push-on style assembles quickly with proper lubrication on O-rings
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Protective retail box
- Weight: 0.1 lbs
