SKU: 11522 | UPC: 690092157340

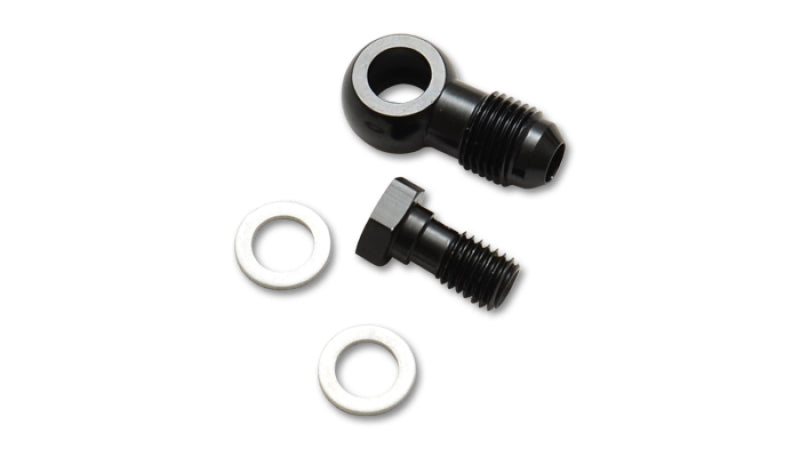

Vibrant -6AN Male Banjo Fitting 12mm x 1.0 Metric Aluminum + 2 Washers
This Vibrant Performance banjo fitting connects -6AN braided fuel lines to standard 12mm x 1.0 metric fuel ports on pumps rails and injectors. Designed for high-performance automotive fuel systems it delivers a lightweight durable seal under high pressure. Perfect for custom setups on imports domestics and race cars requiring reliable AN to metric adaptation.
Key Features
- 6061-T6 Aluminum Construction: Provides strength-to-weight advantage for reduced system mass without sacrificing durability in demanding fuel applications
- Black Anodized Finish: Resists corrosion and wear while blending seamlessly with black AN plumbing for clean professional builds
- Precision 12mm x 1.0 Metric Thread: Matches OEM banjo ports on popular fuel components ensuring direct fit and easy installation
- -6AN Male Flare End: Accepts standard -6AN female hose ends for secure high-flow fuel delivery up to 1000psi
- Includes 2 Crush Washers: Aluminum washers compress for immediate positive seal preventing leaks during initial assembly and reuse
Product Notes
- Inspect port threads for compatibility before purchase
- Clean components thoroughly prior to assembly to avoid contamination
- Packaged securely for protection during transit
Installation Notes
- Professional installation recommended.
- Torque banjo bolt to 18-22 ft-lbs using OEM or equivalent M12x1.0 bolt sold separately
- Compatible with aluminum crush washers included and standard AN hose ends
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | Any with M12x1.0 Banjo Port | Fuel Pump/Rail/Injector | N/A |
| 1988-2005 | Honda | Civic | Si/VTi |
| 1990-2001 | Acura | Integra | GSR/GSR Type R |
| 1992-2000 | Honda | Prelude | Si/VTi |
Why Choose Vibrant Performance?
- Decades of leadership in motorsports fabrication components
- Every fitting CNC-machined and quality-tested for zero defects
- Engineered for extreme pressure and vibration in racing environments
Frequently Asked Questions
-
Q: Does this fit OEM metric fuel ports on Honda models?
A: Yes it threads directly into 12mm x 1.0 banjo holes on Civic Integra and Prelude fuel rails pumps and injectors from 1988-2005 -
Q: What material and finish are used?
A: Made from 6061-T6 aluminum with black anodized coating for corrosion resistance and heat dissipation in engine bays -
Q: Is a banjo bolt included and what is the warranty?
A: Fitting and 2 washers only banjo bolt sold separately. Backed by Vibrant Performance limited lifetime warranty against defects
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Compact protective box 2.5 x 1.5 x 1 inches
- Weight: 0.10 lbs
