SKU: 16961 | UPC: 690092176839

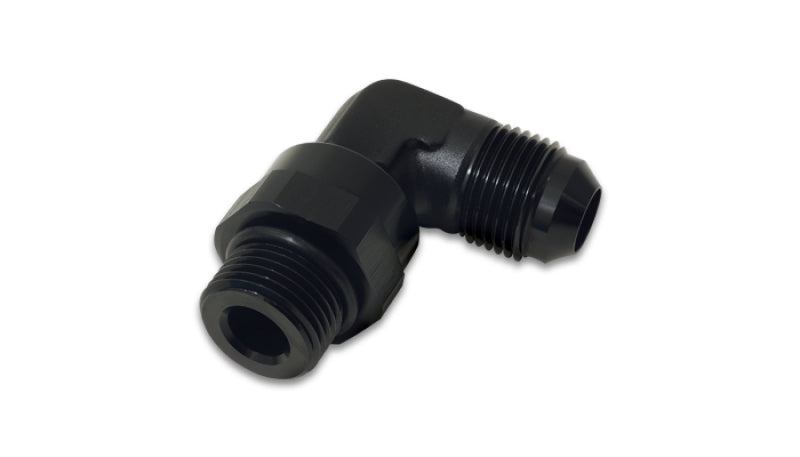

Vibrant -6AN Male Flare to Male -8AN ORB Swivel 90 Degree Adapter Fitting - Anodized Black
This adapter fitting converts -6AN male flare connections to -8AN male ORB ports with a 90-degree swivel elbow for smooth oil flow in custom performance setups. It suits race cars, off-road vehicles, and high-horsepower builds requiring precise hose routing. The design handles high-pressure demands while preventing leaks for consistent engine protection.
Key Features
- Swivel Design: 360-degree rotation simplifies installation in confined engine bays and ensures perfect alignment without stressing hoses
- CNC Machined Aluminum: Built from durable 6061-T6 billet aluminum to withstand extreme pressures and temperatures in oil systems
- Black Anodized Finish: Military Type III hard anodizing resists corrosion, wear, and chemicals for long-lasting performance
- Precise Thread Specs: -6AN 37-degree flare male inlet to -8AN SAE ORB male outlet delivers full-flow capacity without restrictions
- Leak-Proof Sealing: Integrated O-ring on ORB side and flare seating provide secure, reliable connections under boost or high RPM
Product Notes
- Inspect all mating threads and surfaces for cleanliness before assembly
- Avoid over-torquing. follow AN fitting torque specs for best results
- Packaged in protective anti-static bag to prevent damage during transit
Installation Notes
- Professional installation recommended.
- Apply light oil to O-ring during ORB installation. no tape or sealant needed on flare side
- Torque to 20-25 ft-lbs on -8AN ORB and hand-tight plus 1/6 turn on -6AN flare
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Performance Vehicles | Custom Oil/Fuel Systems |
Why Choose Vibrant Performance?
- Earned trust of industry professionals worldwide through proven reliability
- Manufactured to highest quality standards for demanding applications
- Complete product line serves as one-stop solution for fabrication needs
Frequently Asked Questions
-
Q: Will this adapter work with my -6AN oil cooler lines and -8AN block port?
A: Yes, the -6AN male flare connects directly to braided hose ends while the -8AN ORB fits standard O-ring boss ports on engine blocks and pumps -
Q: What material and finish does it use?
A: Constructed from 6061-T6 aluminum with black Type III hard anodized coating for superior corrosion resistance and heat dissipation -
Q: What is the warranty and installation support?
A: Backed by Vibrant Performance limited lifetime warranty against defects. detailed instructions available on manufacturer site
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Securely boxed with foam inserts, dimensions 4 in x 3 in x 1.5 in
- Weight: 0.20 lbs
