SKU: 16565 | UPC: 690092175931

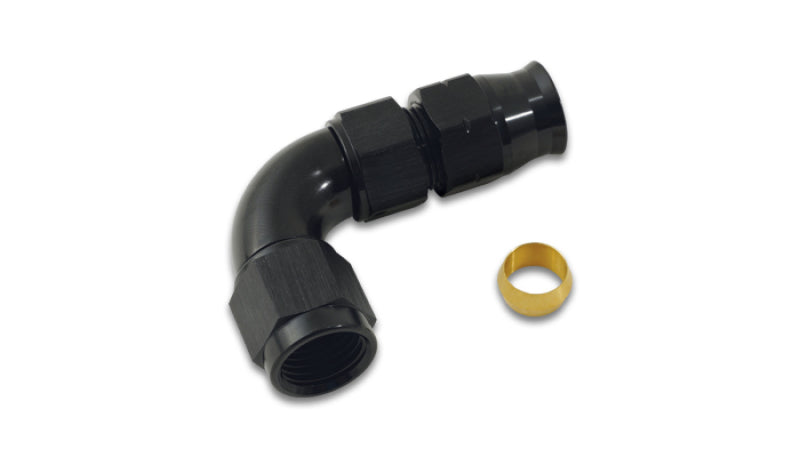

Vibrant 90 Deg 5/16in Tube to Female -6AN Adapter (w/ Olive Inserts)
This Vibrant Performance adapter provides a 90-degree connection from 5/16-inch OD hard tubing to female -6AN swivel fittings for custom oil system routing. Olive inserts create a reliable compression seal on the tube end to prevent leaks under pressure. Built for automotive performance fabrication including race cars street builds and motorsport applications worldwide.
Key Features
- 6061-T6 Aluminum Construction: Delivers strength durability and reduced weight for high-stress oil system demands.
- Black Anodized Finish: Protects against corrosion and wear in harsh engine environments.
- Included Olive Inserts: Ensures tight leak-free grip on 5/16in tube without flaring.
- 90-Degree Elbow Design: Allows precise routing in confined engine bays and chassis areas.
- -6AN Female Swivel: Compatible with standard AN hose ends for easy assembly and adjustments.
Product Notes
- Confirm tube outer diameter measures exactly 5/16in for proper fit.
- Compatible with braided or rubber AN hoses in oil cooler fuel and brake systems.
- Individually packaged to prevent damage during storage or transit.
Installation Notes
- Professional installation recommended.
- Slide olive and nut onto tube before inserting into adapter body then torque nut to 15-20 ft-lbs.
- AN threads are dry seal no sealant required on female swivel side.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Performance Vehicles | Custom Builds |
Why Choose Vibrant Performance?
- Trusted by industry professionals throughout the world for oil system components.
- Manufactured to the highest standards of quality and reliability.
- Complete range serves all fabrication and performance applications.
Frequently Asked Questions
-
Q: What tubing size fits this adapter?
A: Designed for 5/16-inch outer diameter hard line tubing commonly used in oil and fuel systems. -
Q: What material and finish are used?
A: Machined from 6061-T6 aircraft-grade aluminum with durable black anodized coating. -
Q: Does it require special tools for install?
A: Basic wrenches suffice olive inserts simplify tube connection professional install advised for optimal sealing.
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact individual box measures approximately 3in x 3in x 1in
- Weight: 0.1 lbs
