SKU: 16585 | UPC: 690092175993

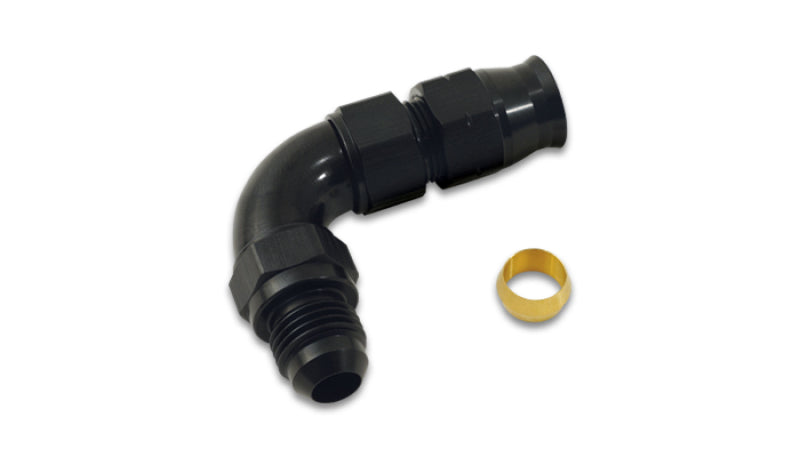

Vibrant 90 Degree 5/16in Tube to Male -6AN Flare Adapter w/ Olive Inserts
This adapter joins 5/16-inch OD hard tubing to -6AN male flare fittings at a 90-degree angle for tight routing in oil systems. Olive inserts ensure a secure leak-proof connection on custom setups. Designed for race cars hot rods and performance engines needing reliable oil flow.
Key Features
- 90-Degree Design: Allows compact routing in engine bays with limited space for cleaner installations
- Olive Inserts Included: Provides bite into 5/16-inch tube walls for high-pressure seal without flare tools
- CNC Machined Aluminum: 6061-T6 construction resists corrosion and handles extreme oil pressures
- Male -6AN Flare: Standard 37-degree flare threads directly to AN hose ends for universal compatibility
- Anodized Finish: Black anodizing protects against fuel oil and environmental damage for long service life
Product Notes
- Confirm tube OD measures exactly 5/16-inch for proper olive bite
- Pair with AN-6 hose and matching sleeve for complete assembly
- Compact size fits inline oil coolers dry sumps and oil reservoirs
Installation Notes
- Professional installation recommended.
- Apply PTFE tape or sealant to AN threads for optimal sealing
- Compatible with standard AN hardware no special tools required
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All | Custom Fabrication Oil Systems |
Why Choose Vibrant Performance?
- Earns trust from racing professionals worldwide
- Manufactured to strict quality standards for reliability
- Offers complete oil system components for any build
Frequently Asked Questions
-
Q: Does this fit 5/16-inch tubing exactly?
A: Yes designed for 5/16-inch OD tube with included olives for secure grip up to 500 PSI -
Q: What material and finish are used?
A: CNC machined from 6061-T6 aluminum with black anodized finish for durability -
Q: What is the warranty and install tip?
A: Backed by Vibrant limited warranty use thread sealant on AN side and torque to 15-20 ft-lbs
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Secure poly bag in 3x2x1 inch box
- Weight: 0.05 lbs
