Vibrant Air-to-Air IC Assy complete w/ end tanks core size: 25in Wx12in Hx3.5in thick 3in in / out - Black Ops Auto Works
Vibrant Air-to-Air IC Assy complete w/ end tanks core size: 25in Wx12in Hx3.5in thick 3in in / out - Black Ops Auto Works
Click to zoom in

Vibrant Air-to-Air IC Assy complete w/ end tanks core size: 25in Wx12in Hx3.5in thick 3in in / out

Vibrant
VIB12815
690092121518
Intercoolers
4 Units In Stock - Ships Next Business Day
$ 665.99 $ 536.99
$ 536.99

SKU: 12815 | UPC: 690092121518

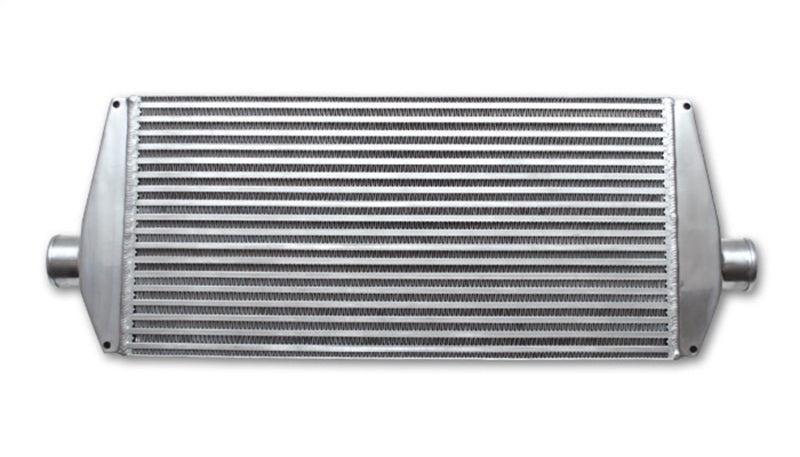

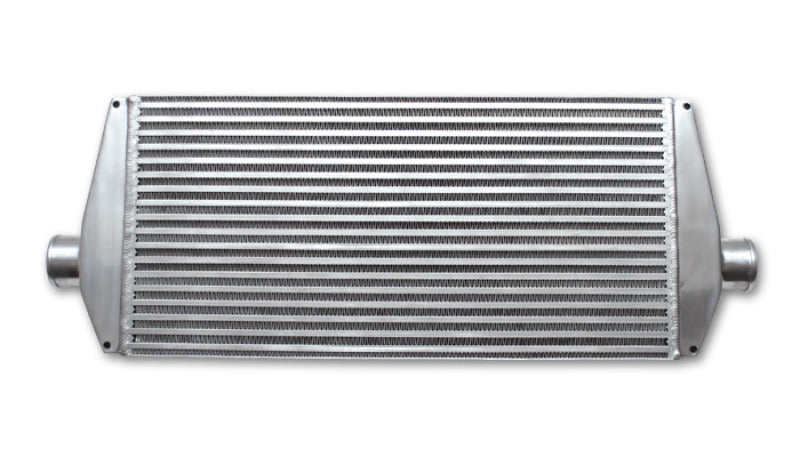

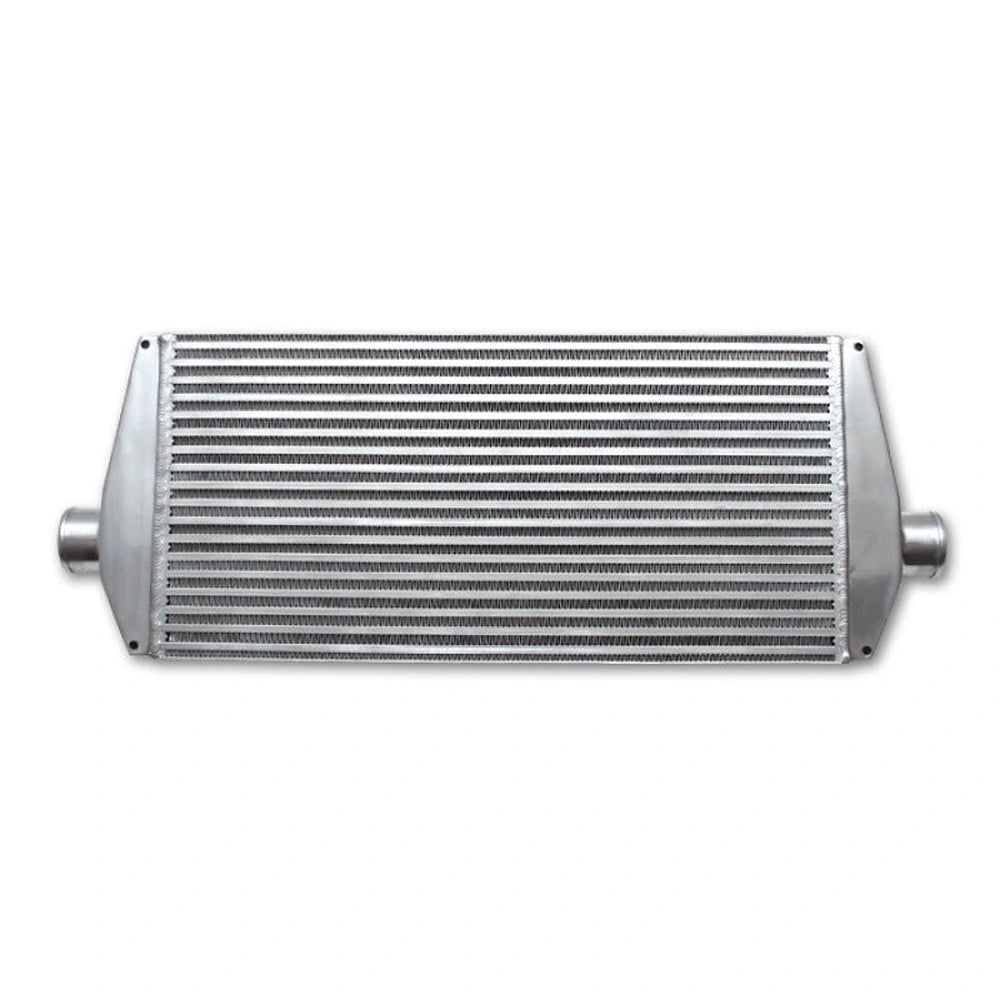

Vibrant Air-to-Air Intercooler Assembly Complete w/ End Tanks Core Size: 25in W x 12in H x 3.5in Thick 3in In/Out - Universal

This Vibrant Performance air-to-air intercooler assembly delivers efficient charge air cooling for universal turbocharged race and high-performance applications. The bar and plate core measures 25 inches wide by 12 inches tall by 3.5 inches thick with 3-inch inlet and outlet ports for high-flow setups. Its durable construction handles extreme boost levels while keeping pressure drop low for denser intake air to the engine.

Key Features

  • Bar and Plate Core: Provides high cooling efficiency with minimal pressure drop compared to tube and fin designs
  • Extreme Boost Capability: Built strong to withstand high boost race conditions without failure
  • TIG Welded End Tanks: Cast aluminum tanks ensure secure, leak-free airflow through the assembly
  • Pressure Tested: Each unit tested for zero leaks to guarantee reliability under pressure
  • 3-Inch Ports: Large inlet and outlet diameter supports maximum airflow in demanding turbo systems

Product Notes

  • Designed for custom fabrication in turbocharged performance builds
  • Avoid harsh chemicals during cleaning to preserve aluminum finish
  • Oversized core requires secure mounting to prevent vibration damage

Installation Notes

  • Professional installation recommended.
  • Custom piping and brackets needed for 3-inch inlet/outlet connections
  • Compatible with aluminum or reinforced silicone hoses and clamps

This Part Fits

Year Make Model Submodel
Universal All Turbocharged Vehicles High Boost Race Applications

Why Choose Vibrant Performance?

  • Established leader in motorsport cooling components
  • Race track tested for consistent high-performance results
  • Precision welded aluminum for long-term durability

Frequently Asked Questions

  • Q: Does this intercooler fit specific vehicles?
    A: Universal design requires custom plumbing and mounting for any turbocharged high boost setup including drag cars and street performance builds
  • Q: What materials are used in construction?
    A: Full aluminum bar and plate core paired with TIG welded cast aluminum end tanks for lightweight strength and corrosion resistance
  • Q: What warranty coverage is provided?
    A: Limited lifetime warranty against manufacturing defects when installed and used properly

Shipping & Handling

  • Method: Ground shipping
  • Availability: In stock - ships same or next business day
  • Packaging: Securely boxed approximately 30in x 15in x 8in
  • Weight: 28 lbs
