SKU: 28995 | UPC: 690092186081

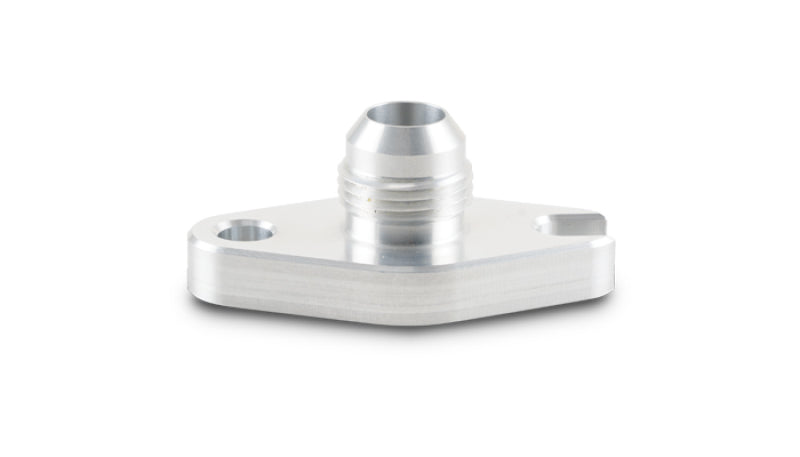

Vibrant Aluminum Oil Drain Flange (w/Crowfoot) -10AN Male Flare 2.060in Bolt Hole (Garrett GT6041)
Vibrant Performance Oil Drain Flange bolts to the Garrett GT6041 turbocharger oil drain port for reliable drainage in high-horsepower builds. The 2.060in bolt hole ensures direct fit while the -10AN male flare connects securely to AN oil lines. Crowfoot design allows fast plug access for clean oil changes without turbo removal.
Key Features
- 6061 Aluminum Construction: Lightweight durable material resists corrosion in harsh engine bay conditions
- Crowfoot Integration: Built-in recess accepts crowfoot wrench for simple drain plug turns during service
- -10AN Male Flare: Provides leak-free seal to braided AN hose for consistent oil flow
- 2.060in Bolt Hole: Precision machined to match Garrett GT6041 turbo drain flange bolt pattern
- M8 x 1.25 Cap Screws: Includes pair of button-head screws for secure mounting to turbo housing
Product Notes
- Sold as single flange for Garrett GT6041 turbo oil drain only
- Raw machined finish accepts custom coatings or anodizing
- Pair with -10AN female swivel seal for complete drain line assembly
Installation Notes
- Professional installation recommended.
- Clean mating surfaces before mounting to turbo housing
- Torque M8 screws to 10-12 ft-lbs and AN fitting to 20 ft-lbs
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | Garrett | GT6041 | Turbocharger |
Why Choose Vibrant Performance?
- Proven in drag racing and motorsports applications
- CNC machined from billet aluminum in the USA
- Direct-fit design from turbo oil experts
Frequently Asked Questions
-
Q: Does this flange fit other Garrett turbos?
A: Designed exclusively for Garrett GT6041 with 2.060in bolt hole verify turbo specs before purchase -
Q: What material and hardware is used?
A: Billet 6061 aluminum flange includes two M8 x 1.25 button-head cap screws no additional parts needed -
Q: How does the crowfoot work for service?
A: Recessed area fits crowfoot wrench on drain plug for easy access even in tight turbo positions
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Protective foam insert in 3.5 x 3.5 x 1 inch box
- Weight: 0.15 lbs
