SKU: 29924 | UPC: 690092174880

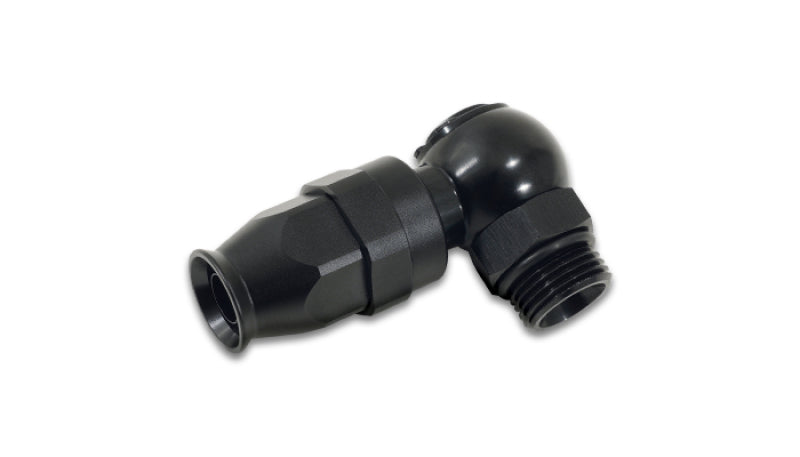

Vibrant Performance Banjo Hose End -4 AN Bolt to -4 ORB for PTFE Lined Flex Hose
Vibrant Performance banjo hose end connects -4 AN PTFE lined flex hose to -4 ORB ports in oil and fuel systems. Designed for high-pressure performance applications across race cars street vehicles and custom builds. Delivers secure leak-free connections that handle extreme temperatures and pressures with consistent flow.
Key Features
- CNC-Machined 6061-T6 Aluminum: Provides strength-to-weight advantage for demanding engine bays without adding bulk
- Black Anodized Finish: Protects against corrosion fuel residue and harsh chemicals for long-lasting appearance and function
- Beadlock Hose Retention: Grips PTFE liner firmly without damage ensuring vibration-resistant seal under boost or track conditions
- -4 AN Male Banjo Bolt: 37-degree flare design mates securely to banjo fittings with o-ring groove for zero leaks
- -4 ORB Female Port: Straight thread accepts 7/16-20 o-ring boss for precise manifold or adapter connections
Product Notes
- Sold as single fitting includes necessary o-rings for immediate assembly
- Pressure rated over 1000 PSI suitable for oil coolers dry sumps and fuel injection
- Compatible with all Vibrant PTFE lined flex hoses and AN system components
Installation Notes
- Professional installation recommended.
- Torque -4 AN bolt to 12-15 ft-lbs and ORB port to 10-12 ft-lbs using calibrated wrench
- Use Vibrant hose assembly tool for proper PTFE liner insertion and beadlock engagement
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All Performance Vehicles | PTFE Hose Oil Fuel Systems |
Why Choose Vibrant Performance?
- Earned trust of racers fabricators and shops worldwide through proven reliability
- Manufactured with tight tolerances for consistent performance in critical fluid lines
- Complete oil system lineup simplifies builds from stock replacements to full race setups
Frequently Asked Questions
-
Q: What size hose does this banjo end accept?
A: Designed specifically for -4 AN inner diameter PTFE lined flex hose ensuring perfect fit and seal -
Q: What finish and material construction?
A: Billet 6061-T6 aluminum body with durable black anodized coating for corrosion resistance -
Q: What torque specs for installation?
A: Apply 12-15 ft-lbs to AN bolt and 10-12 ft-lbs to ORB port check o-rings for damage before assembly
Shipping & Handling
- Method: UPS Ground USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact protective box 3 x 3 x 1 inches
- Weight: 0.1 lbs
