SKU: 13590 | UPC: 690092172923

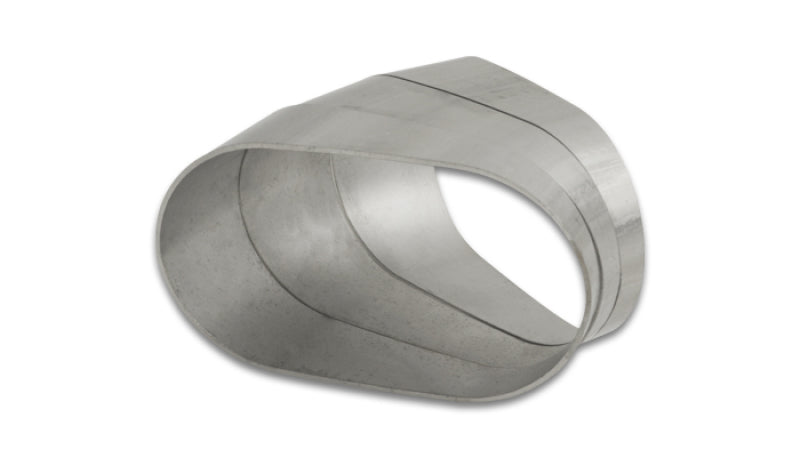

Vibrant Horizontal 304 SS Oval Pie Cuts 4.0in OD Tight 45 Degree Elbow - Bag of 3 - Universal
Vibrant pie cuts fabricate horizontal tight 45 degree elbows from 4.0 inch OD oval tubing for custom performance exhaust systems. These components suit drag cars, race vehicles, and street performance builds needing low clearance bends. Precision cuts deliver smooth flow and weld alignment for reliable exhaust construction.
Key Features
- 304 Stainless Steel: 16 gauge T304 construction handles extreme heat and resists corrosion in demanding exhaust applications
- 4.0in OD Oval Sizing: Matches 4.00 x 3.50 inch oval tubing standards for seamless integration in turbo downpipes and exhaust routing
- Tight 45 Degree Angle: Horizontal design creates compact bends ideal for tight spaces under chassis or body lines
- Bag of 3 Pie Cuts: Provides exact pieces to weld one complete elbow with minimal material waste
- Pre-Cut Precision: Factory laser cut edges ensure accurate mating surfaces and professional results
Product Notes
- TIG welding required to join pie cuts into finished elbow
- Debur edges before welding for clean airflow
- Ships in protective packaging to prevent damage
Installation Notes
- Professional installation recommended.
- Tack weld pie cuts in sequence for alignment using fixtures if available
- Compatible with standard TIG welders and 304 SS filler rod
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Custom Exhaust Fabrication | Performance Builds |
Why Choose Vibrant Performance?
- Earned trust from industry professionals worldwide
- Manufactured to high standards of quality and reliability
- Consolidated offering serves all fabrication applications
Frequently Asked Questions
-
Q: Does this fit specific vehicles?
A: Universal design for custom fabrication on any performance vehicle with 4.0in oval exhaust tubing including dragsters and imports -
Q: What is the material thickness?
A: 16 gauge .060 inch T304 stainless steel for strength and heat tolerance -
Q: What welding process is needed?
A: TIG welding with 304 SS filler for best results and durability
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Protective bag in 5.5 x 5.5 x 2.1 inch box
- Weight: 1.70 lbs
