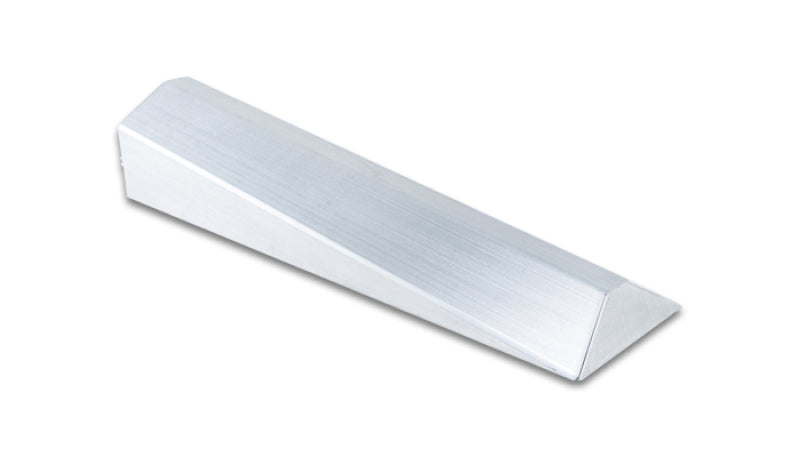

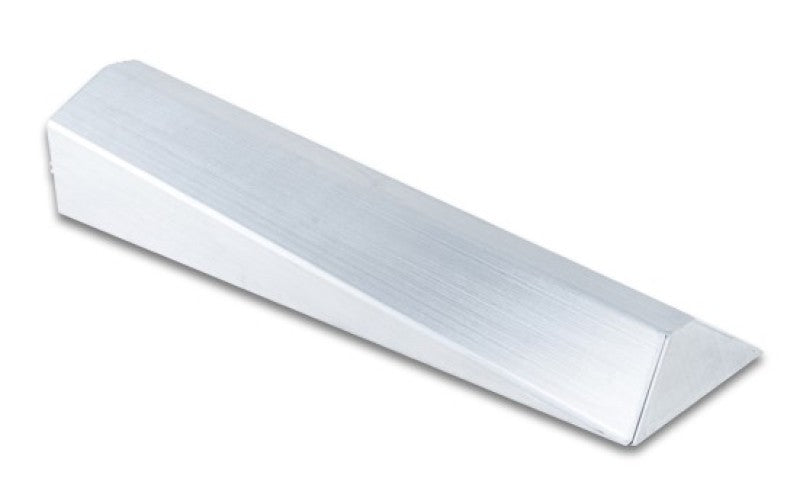

Vibrant I/C End Tank 4in Wide 22in Long 3.75in Tall Use w/ Vertical I/C Core 12866 - 5052 Aluminum

Vibrant
VIB22866
690092180096
Forced Induction Components
11 Units In Stock - Ships Next Business Day
$ 118.99 $ 94.99
$ 94.99

SKU: 22866 | UPC: 690092180096

Vibrant I/C End Tank 4in Wide 22in Long 3.75in Tall Use w/ Vertical I/C Core 12866 - 5052 Aluminum

This Vibrant Performance end tank pairs with the 12866 vertical flow intercooler core for custom fabrication projects. Build high-efficiency intercoolers for turbocharged vehicles with precise port alignment and durable construction. It supports better airflow and lower charge air temperatures in performance setups.

Key Features

  • 5052 Aluminum Construction: 0.100 inch thick sheet offers strength corrosion resistance and easy weldability for long-lasting intercooler manifolds
  • Exact Dimensions: 4 inches wide by 22 inches long by 3.75 inches tall matches the 12866 core length for seamless integration
  • Precision Machining: Laser cut body with CNC machined inlet outlet ports ensures leak-free seals and optimal flow
  • Vertical Core Compatibility: Designed exclusively for Vibrant 12866 28x12x3 inch core simplifying assembly in tight engine bays
  • TIG Welded Joints: High-quality welds provide structural integrity under boost pressures up to 50 psi

Product Notes

  • Intended for custom intercooler fabrication TIG welding required to attach to core
  • Clean surfaces before welding to prevent contamination
  • Ships raw aluminum ready for polishing or powder coating

Installation Notes

  • Professional installation recommended.
  • TIG weld to 12866 intercooler core using 5052 filler rod at 400-500 degrees preheat
  • Ports accept 2.00-2.50 inch hoses use silicone couplers and T-bolt clamps

This Part Fits

Year Make Model Submodel
Universal - Custom Turbocharged Vehicles Forced Induction Builds

Why Choose Vibrant Performance?

  • Established leader in turbo and exhaust components since 1993
  • American-made parts with focus on fabrication quality
  • Laser cutting and CNC processes deliver consistent tolerances

Frequently Asked Questions

  • Q: Does this end tank fit specific vehicles?
    A: Universal design works with any custom intercooler build using the Vibrant 12866 vertical core no vehicle-specific modifications needed
  • Q: What material and thickness is used?
    A: High-grade 5052 aluminum at 0.100 inch thickness provides excellent strength-to-weight ratio and weldability
  • Q: What warranty applies and installation tips?
    A: Backed by Vibrant limited lifetime warranty on manufacturing defects weld professionally for best results

Shipping & Handling

  • Method: UPS Ground or FedEx Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Protective cardboard box 24 x 6 x 5 inches
  • Weight: 1.85 lbs
