SKU: 16994 | UPC: 690092177041

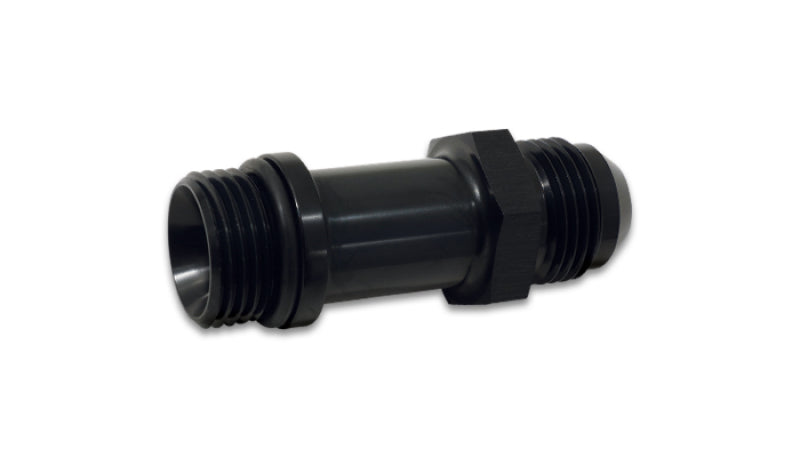

Vibrant Male -10AN to Male Straight -10AN ORB w/ O-Ring Extender Adapter 2.125 in. long - Universal
The Vibrant Performance 16994 adapter joins -10AN male flare fittings to -10AN ORB ports using a 2.125 inch straight O-ring extender for secure connections in fuel oil and vacuum systems. Designed for performance vehicles this fitting handles high pressure and vacuum distribution across custom setups. Its reliable seal prevents leaks in demanding motorsports environments.
Key Features
- Material: CNC machined 6061-T6 aluminum construction delivers strength at minimal weight of 0.05 lbs
- Connections: Male -10AN (5/8-18 UNF) flare to Male -10ORB (7/8-14 UNF) port with integrated O-ring groove for leak proof seal
- Length: 2.125 inches overall provides exact extension for tight routing in engine bays
- Design: Straight profile enables direct inline plumbing for fuel lines oil coolers and vacuum blocks
- Finish: Anodized surface resists corrosion from fuels oils and coolants for extended durability
Product Notes
- Compatible with gasoline E85 methanol synthetic oils and coolants
- O-ring pre installed for quick assembly
- Made in USA with precise tolerances
Installation Notes
- Professional installation recommended.
- Lubricate O-ring with assembly lube and torque ORB end to 30-35 ft-lbs
- Compatible with standard AN hose ends and ORB port blocks
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All Performance Vehicles | Fuel Oil Vacuum Systems |
Why Choose Vibrant Performance?
- Proven reliability in drag racing and circle track applications
- Billet construction withstands extreme pressures over 1000 PSI
- Exact machining ensures drop in fit for custom fabrication
Frequently Asked Questions
-
Q: Does this fit standard -10AN braided line hose ends?
A: Yes the male -10AN flare end mates directly with -10AN swivel hose fittings on braided lines -
Q: What threads are used on the ORB side?
A: Male -10 ORB features 7/8-14 UNF straight thread with O-ring groove for SAE port sealing -
Q: What warranty coverage applies?
A: Backed by Vibrant limited lifetime warranty against manufacturing defects
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Retail box 3.5 x 1.75 x 1 inches
- Weight: 0.05 lbs
