SKU: 24414 | UPC: 690092158149

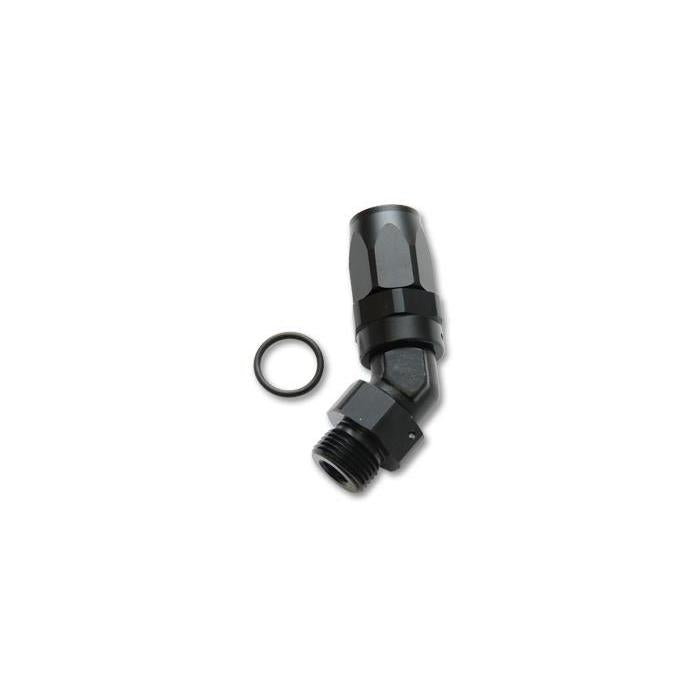

Vibrant Male -16AN to -16AN ORB 45 Degree Hose End Fitting - Universal Performance Vehicles
Vibrant Performance Male -16AN to -16AN ORB 45 Degree Hose End Fitting connects 1-inch ID braided hose to -16 ORB ports in a compact 45-degree angle. This fitting works on race cars street machines and custom performance builds for fuel oil coolant and transmission lines. It delivers reliable high-pressure seals with smooth unrestricted flow.
Key Features
- 6061-T6 Aluminum Construction: Lightweight at 0.20 lbs reduces vehicle weight while handling extreme pressures
- Black Anodized Finish: Protects against corrosion and wear in tough engine bay conditions
- Smooth Internal Bore: Ensures full fluid flow for peak system efficiency
- Anti-Leak O-Ring Seal: Locks into ORB ports to stop leaks under vibration and heat
- Swivel Hose End Design: Simplifies install on beaded Vibrant braided hose without cutting
Product Notes
- Compatible with all Vibrant Performance braided flex hoses in -16AN size
- Suitable for ethanol methanol gasoline oil and coolant applications
- Sold individually with protective packaging for safe handling
Installation Notes
- Professional installation recommended.
- Torque -16AN ORB port to 40-50 ft-lbs using proper swivel seating tool
- Compatible with beaded or band clamp hose ends requires no special hardware
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Performance Vehicles | Fuel Oil Coolant Systems |
| Universal | All | Race Cars | Custom Plumbing |
| Universal | All | Street Machines | High Performance Builds |
Why Choose Vibrant Performance?
- Established leader in motorsports plumbing components
- Precision CNC-machined parts for exact tolerances
- Complete line of AN fittings and hose for full system builds
Frequently Asked Questions
-
Q: What vehicles does this fitting work on?
A: Universal fit for all performance vehicles race cars street machines and custom builds with -16 ORB ports -
Q: What material and finish does it have?
A: 6061-T6 aluminum with black anodized finish for lightweight strength and corrosion resistance -
Q: What installation torque is required?
A: Torque -16AN ORB port to 40-50 ft-lbs professional installation recommended handles up to 1000+ PSI
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Compact protective box 3.5 x 2.5 x 1.5 inches
- Weight: 0.20 lbs
