SKU: 22641 | UPC: 690092184346

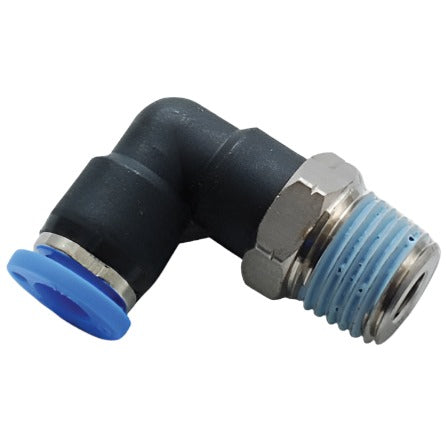

Vibrant Male Elbow 1-Touch Fitting for 1/4in OD Tube (1/16in NPT)
Vibrant Performance male elbow 1-touch fittings connect 1/4 inch OD tubing to 1/16 inch NPT male ports in automotive air systems. These fittings work in universal performance applications like turbo plumbing PCV lines and brake boosters. Push-to-connect design ensures quick secure installation with tubing locked firmly up to 150 PSI.
Key Features
- One-Touch Connection: Push tubing into fitting for instant secure hold virtually impossible to remove without release.
- 150 PSI Pressure Rating: Handles ambient and pressurized air systems reliably in demanding performance setups.
- PTFE Coated Threads: Male 1/16in NPT threads resist galling for smooth installation and leak-free seals.
- 90-Degree Elbow Design: Routes 1/4in OD tubing precisely around tight engine bay spaces.
- Compatible Tubing: Works with nylon polyurethane and polyethylene tubing for versatile air line builds.
Product Notes
- Cut tubing squarely and deburr ends before insertion for airtight seal.
- Use in vacuum fuel vapor or oil-resistant air applications only.
- Sold as single fitting MPN 22641 for custom fabrication needs.
Installation Notes
- Professional installation recommended.
- Apply thread sealant to NPT threads if system exceeds vacuum levels.
- Compatible with standard AN hose ends and bulkhead fittings.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Performance Vehicles | 1/4in OD Tube 1/16in NPT Ports |
Why Choose Vibrant Performance?
- Established leader in exhaust and fabrication components.
- Components built with high-grade materials for daily track use.
- Engineered for exact tolerances in racing and street applications.
Frequently Asked Questions
-
Q: What tubing does this fitting accept?
A: Designed for 1/4 inch outer diameter tubing including nylon polyurethane and polyethylene types commonly used in air systems. -
Q: What thread size and coating is on the elbow?
A: 1/16 inch NPT male threads with PTFE coating to prevent seizing and ensure easy threading into ports. -
Q: Does Vibrant offer a warranty on fittings?
A: Backed by manufacturer defect warranty when installed and used per guidelines contact Vibrant for claims.
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Protective poly bag in 2in x 2in x 1in box
- Weight: 0.05 lbs
