Vibrant Oil Filter Spacer 1/8 NPT Female Ports

Vibrant
VIB17070
690092178895
Oil Line Kits
3 Units In Stock - Ships Next Business Day
$ 99.99 $ 79.99
$ 79.99

SKU: 17070 | UPC: 690092178895

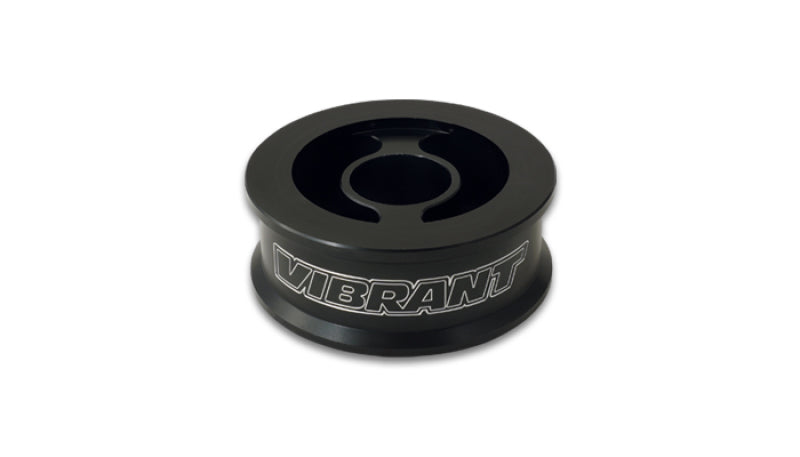

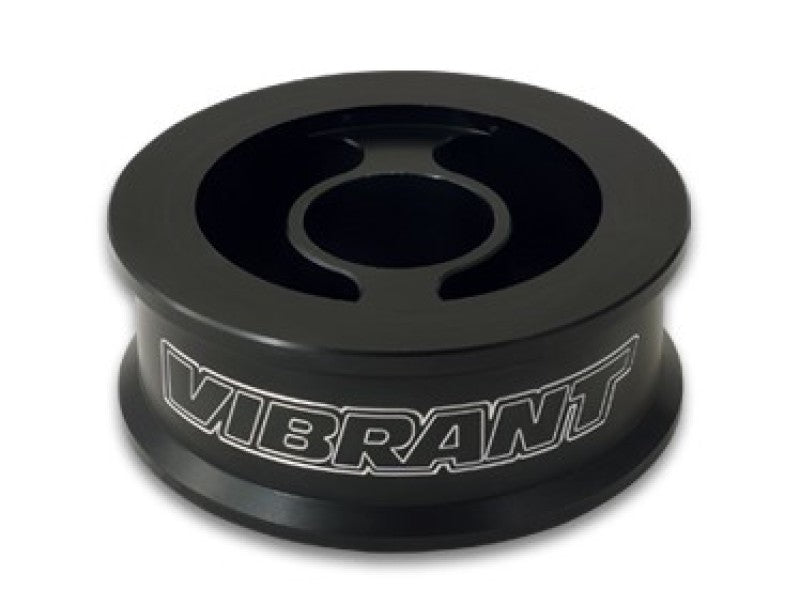

Vibrant Oil Filter Spacer 1/8 NPT Female Ports Universal Fit

This Vibrant Performance oil filter spacer installs between the engine block and spin-on oil filter on universal applications including cars trucks and performance builds. It provides two 1/8 NPT female ports positioned 180 degrees apart for oil pressure senders temperature sensors or gauges. The design adds 1/2 inch of clearance to solve header interference issues while maintaining full oil flow.

Key Features

  • Dual 1/8 NPT Ports: Install oil pressure gauges sensors or temp probes without adapters ports are tapped straight 1/8-27 NPT female.
  • Clearance Addition: Increases oil filter height by 0.5 inches to clear tight exhaust headers or chassis components in engine swaps.
  • CNC Billet Aluminum: Machined from 6061-T6 aluminum with black anodized finish for strength corrosion resistance and heat dissipation.
  • Universal Thread Fit: Matches standard 3/4-16 oil filter mounts on most domestic import and aftermarket blocks.
  • Zero Flow Restriction: Open bore design ensures unrestricted oil flow to the filter for reliable engine lubrication.

Product Notes

  • Ports accept plugs if unused included plugs recommended for sealed operation.
  • Clean threads before installation to prevent contamination.
  • Ships in protective packaging weighs 0.15 lbs box measures 3 x 3 x 1 inches.

Installation Notes

  • Professional installation recommended.
  • Lube O-ring with assembly lube torque spacer to 20-25 ft-lbs then hand-tighten filter.
  • Compatible with all standard spin-on filters no special hardware required.

This Part Fits

Year Make Model Submodel
Universal All Spin-On Filter Mounts All

Why Choose Vibrant Performance?

  • Trusted by racers and builders worldwide for oil system reliability.
  • Manufactured to exacting standards in the USA.
  • Engineered for high-performance applications with precision tolerances.

Frequently Asked Questions

  • Q: Does this spacer fit LS engines or small block Chevy?
    A: Yes universal design threads onto any 3/4-16 spin-on filter mount including GM LS SBC Ford and import blocks.
  • Q: What material and finish does it have?
    A: CNC machined 6061-T6 billet aluminum with durable black anodized coating resists corrosion and wear.
  • Q: Is there a warranty and how to install?
    A: Backed by Vibrant limited lifetime warranty install between block and filter torque spacer then add filter per engine specs.

Shipping & Handling

  • Method: UPS Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Compact box 3 x 3 x 1 inches
  • Weight: 0.15 lbs
