SKU: 22304 | UPC: 690092159061

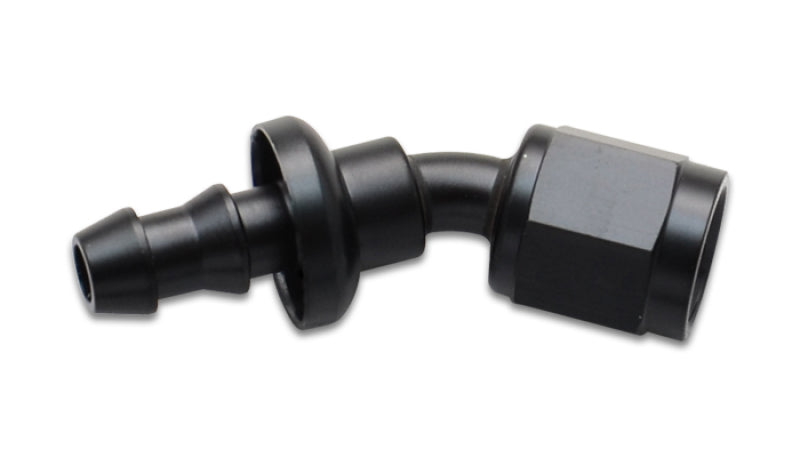

Vibrant Push-On 30 Degree Hose End Elbow Fitting Size -4AN
This Vibrant Performance push-on hose end elbow fitting delivers reliable connections for custom oil fuel and coolant lines in performance vehicles. The 30 degree angle enables precise routing in tight engine bays while the push-on design secures hose without clamps. Built for automotive enthusiasts building high-performance plumbing systems.
Key Features
- Push-On Design: Beaded shank grips hose securely for leak-free seals eliminating clamps and tools for faster assembly
- 30 Degree Elbow: Allows smooth hose bends around components improving flow and reducing restrictions in confined spaces
- -4AN Sizing: Fits 1/4 inch ID hose with 7/16-20 AN male thread standard for AN systems in race and street applications
- Aluminum Construction: Lightweight 6061-T6 aluminum body resists corrosion and withstands high pressures up to 1000 PSI
- Black Anodized Finish: Durable coating prevents wear and provides clean professional look under the hood
Product Notes
- Engineered for use with Vibrant Performance Black Pearl push-on hose for optimal fit and performance
- Inspect fittings before assembly to ensure clean mating surfaces for maximum reliability
- Ships as special order verify stock for quickest delivery
Installation Notes
- Professional installation recommended.
- Push hose firmly onto beaded shank until fully seated no clamps required
- Compatible with standard AN swivel seals and O-rings for easy plumbing connections
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Performance Vehicles | All |
| 1960-2024 | Chevrolet | Camaro Corvette | LS LT V8 |
| 1960-2024 | Ford | Mustang F-150 | 5.0 Coyote |
| 1980-2024 | Dodge | Challenger Charger | 5.7 6.4 Hemi |
Why Choose Vibrant Performance?
- Trusted by racing professionals and builders worldwide for dependable results
- Manufactured to exacting standards ensuring consistent quality in every part
- Complete line of fittings and hose provides seamless system integration
Frequently Asked Questions
-
Q: What hose does this fitting work with?
A: Designed specifically for Vibrant Black Pearl push-on hose with 1/4 inch ID other hoses may not seat properly on the bead -
Q: What material is the fitting made from?
A: CNC-machined 6061-T6 aluminum with black anodized finish for strength durability and heat resistance -
Q: Does Vibrant offer a warranty?
A: Limited lifetime warranty covers manufacturing defects when used as directed in compatible systems
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Secure padded envelope 3 x 3 x 1 inches
- Weight: 0.1 lbs
