SKU: 11563 | UPC: 690092171278

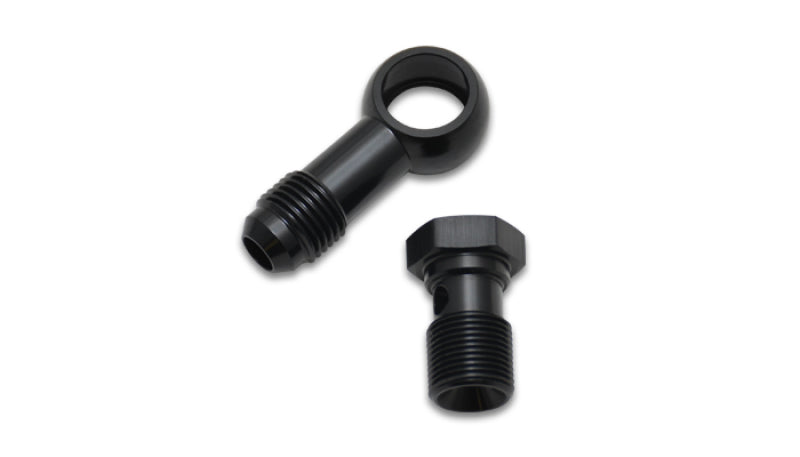

Vibrant Performance Single -4AN 7/16-24 Aluminum Male Banjo Adapter Assembly for 1997-2023 GM LS Vehicles
This adapter converts OEM 7/16-24 banjo ports to -4AN male swivel fittings for braided hose oil systems. Designed for GM LS engines in Camaro Corvette Silverado GTO and more it delivers secure high-flow oil delivery to coolers and sensors. Build confidence with leak-free performance in demanding race or street applications.
Key Features
- Aluminum Construction: CNC machined from 6061-T6 aluminum for lightweight strength and corrosion resistance in oil systems
- Thread Compatibility: 7/16-24 male banjo threads into stock LS oil pan ports while -4AN male swivel connects to AN hose ends
- Swivel Design: Reusable 360-degree swivel eliminates binding for easy routing in tight engine compartments
- Single Port Layout: Straightforward single-passage setup suits oil pressure senders coolers and filters
- Anodized Finish: Black anodized coating resists wear fuel and oil for long-lasting appearance and function
Product Notes
- Inspect OEM port threads for damage before installation to ensure proper seal
- Pair with PTFE braided -4AN hose and crush washers for optimal pressure handling
- Small compact design measures 1.5 inches long fits confined spaces without modification
Installation Notes
- Professional installation recommended.
- Torque banjo bolt to 22-25 ft-lbs using thread sealant on straight threads only
- Compatible with OEM hardware no additional adapters or spacers required
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1997-2004 | Chevrolet | Corvette | Base Z06 LS1 LS6 |
| 1998-2002 | Chevrolet | Camaro | Z28 SS LS1 |
| 2004-2006 | Pontiac | GTO | Base LS1 LS2 |
| 1999-2007 | Chevrolet | Silverado 1500 | LS Engine |
| 2009-2015 | Cadillac | CTS-V | LS3 LSA |
| 2010-2023 | Chevrolet | Camaro | SS LS3 LT1 |
| 2014-2019 | Chevrolet | Corvette | Stingray Z06 LT1 LT4 |
Why Choose Vibrant Performance?
- Earned trust of industry professionals throughout the world
- Manufactured to the highest standards in quality and reliability
- Consolidated offering serves as a one-stop shop for all oil system applications
Frequently Asked Questions
-
Q: Does this fit GM LS oil pan banjo ports?
A: Yes it threads directly into 7/16-24 banjo fittings on Gen III IV and V LS engines for oil pressure senders or cooler lines -
Q: What material and finish does it have?
A: Built from 6061-T6 aluminum with black anodized finish to handle heat oil and fuel exposure -
Q: What warranty coverage applies?
A: Vibrant Performance backs it with a limited lifetime warranty against manufacturing defects when installed correctly
Shipping & Handling
- Method: UPS Ground USPS Priority Mail
- Availability: In stock - ships same or next business day
- Packaging: Secure individual box 3 x 3 x 1 inches
- Weight: 0.1 lbs
