SKU: 24063 | UPC: 690092174743

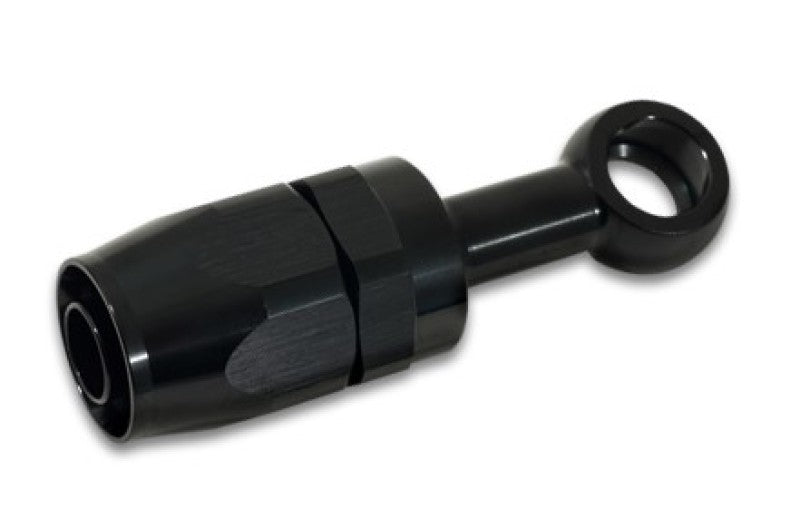

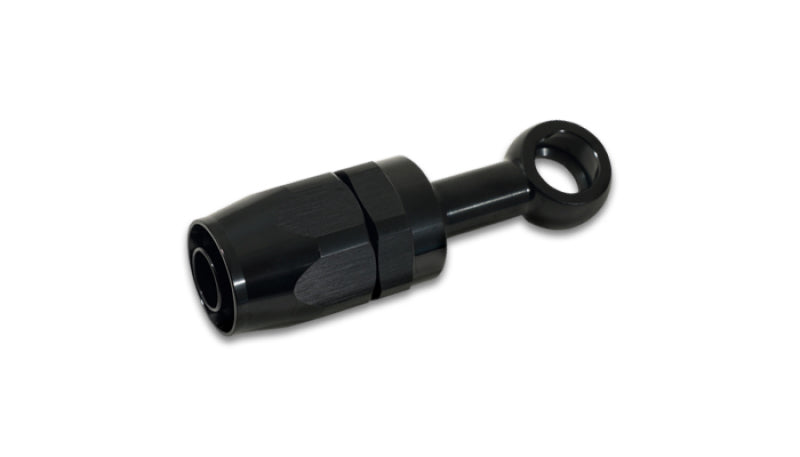

Vibrant Performance Single -6AN x 12mm ID Banjo to Hose End Aluminum Fitting for BMW E46 E90 M3 S54 S65
This CNC machined aluminum fitting connects 12mm ID OEM banjo bolts to -6AN braided hoses for BMW M3 oil cooler upgrades. It fits S54 engines in E46 M3 and Z3/Z4 M models plus S65 in E90/E92/E93 M3. Delivers unrestricted oil flow to prevent engine starvation during track use.
Key Features
- CNC Machined 6061-T6 Aluminum: Provides strength-to-weight advantage with corrosion resistance for long-term durability in harsh engine bay conditions
- 12mm ID Banjo Bore: Exact match for BMW S54 and S65 banjo bolts ensuring drop-in replacement without modification
- -6AN Female Swivel Hose End: Secure connection to AN braided lines for high-pressure oil delivery up to 1000 PSI
- Single Port Design: Simplifies oil line routing in tight spaces around oil filter housings
- Precision Tolerances: O-ring sealed banjo interface prevents leaks even under extreme thermal cycling
Product Notes
- Pair with Vibrant Performance braided hose assemblies for complete oil cooler system
- Inspect O-rings for damage before reuse and replace if needed
- Packaged in protective bubble wrap inside retail box
Installation Notes
- Professional installation recommended.
- Reuse OEM M14x1.5 banjo bolt torqued to 25 Nm with new copper washers
- Compatible with all -6AN hose ends and clamps from major brands
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2001-2006 | BMW | E46 M3 | All |
| 2008-2013 | BMW | E90 M3 | All |
| 2008-2013 | BMW | E92 M3 | All |
| 2008-2013 | BMW | E93 M3 | All |
| 2001-2003 | BMW | Z3 M Roadster | All |
| 2001-2003 | BMW | Z3 M Coupe | All |
| 2006-2008 | BMW | Z4 M Coupe | All |
| 2006-2008 | BMW | Z4 M Roadster | All |
Why Choose Vibrant Performance?
- Earned trust of motorsport professionals worldwide for oil system components
- Manufactured to strict quality standards for zero-defect reliability
- Complete range covers custom fabrication to full vehicle builds
Frequently Asked Questions
-
Q: Will this fit my 2006 E46 M3 oil filter housing?
A: Yes it directly replaces the single 12mm ID banjo port on S54 engines using the stock M14x1.5 bolt -
Q: What finish and material does it have?
A: Black anodized 6061-T6 billet aluminum for heat and chemical resistance -
Q: Do I need special tools for install?
A: Basic wrench set suffices. torque banjo bolt properly and check for leaks after first heat cycle
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: 1 x 4 x 6 inch retail box
- Weight: 0.1 lbs
