SKU: 11562 | UPC: 690092171261

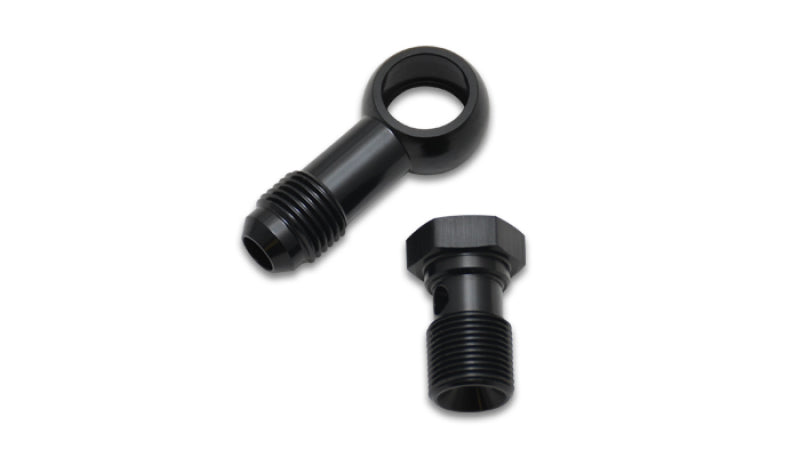

Universal All Fuel Systems Vibrant Single Male Banjo Adapter Assembly -4AN Banjo 7/16-20 Aluminum Bolt
Vibrant Performance Single Male Banjo Adapter Assemblies connect -4AN braided fuel lines to standard 7/16-20 banjo ports on fuel rails pumps and regulators. These adapters fit universal fuel systems across all makes and models with 7/16-20 banjo ports delivering lightweight construction reliable sealing and high-flow fuel delivery for racing and street performance. Overall length of 1.250 inches ensures straightforward integration into custom setups.
Key Features
- 6061 Aluminum Alloy Construction: Provides strength-to-weight ratio essential for racing fuel systems without adding bulk
- Black Anodized Finish: Resists corrosion from fuels and additives ensuring long-term performance
- -4AN Female Swivel Flare: Delivers secure leak-free attachment to any compatible AN hose end up to 2500 psi
- 7/16-20 UNF Male Banjo Bolt: Matches common threaded ports on injectors rails and pumps
- Two 0.063 Inch Aluminum Crush Washers Included: Creates positive seal under pressure for consistent fuel flow
Product Notes
- Compatible with gasoline E85 methanol and alcohol fuels
- Inspect washers for reuse or replace with included set
- Packaged in protective materials to prevent damage
Installation Notes
- Professional installation recommended.
- Torque banjo bolt to 18-22 ft-lbs using calibrated wrench
- Works with standard -4AN hose ends and banjo port hardware
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Fuel Systems | 7/16-20 Banjo Ports |
Why Choose Vibrant Performance?
- Established leader in motorsports fabrication fittings
- Precision CNC-machined components for exact tolerances
- Trusted in drag racing circle track and street performance
Frequently Asked Questions
-
Q: What fuel systems does this adapter fit?
A: Universal design fits any fuel rails pumps or regulators with standard 7/16-20 banjo ports across all makes and models -
Q: What is the construction material and finish?
A: Made from 6061-T6 aluminum alloy with black anodized coating for fuel resistance -
Q: What torque specs for installation?
A: Torque banjo bolt to 18-22 ft-lbs with calibrated wrench includes two 0.063 inch aluminum crush washers for secure seal
Shipping & Handling
- Method: UPS Ground USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact protective box dimensions 3 x 2 x 1 inches
- Weight: 0.05 lbs
