SKU: 19853 | UPC: 690092166076

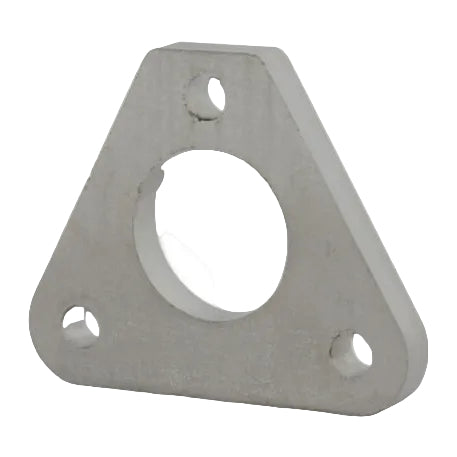

Vibrant T304SS Turbo Inlet Flange for Garrett GT1544-454082 1998-2006 VW Audi TDI
Constructed from T304 stainless steel this Vibrant Performance turbo inlet flange fits the Garrett GT1544V turbocharger part 454082 used in 1998-2006 Volkswagen Jetta Golf and New Beetle TDI models plus select Audi A3 applications. It provides a precise leak-free seal at the compressor inlet for reliable boost delivery in custom intake and exhaust setups. Ideal for fabricators building high-performance turbo systems.
Key Features
- T304 Stainless Steel Build: Handles extreme heat and resists corrosion for dependable long-term use in demanding turbo environments.
- Exact Garrett GT1544V Match: Precision machined to 454082 turbo inlet pattern for bolt-on alignment and zero gaps.
- Fabricator Focused Design: Supports custom piping manifolds and transitions for tailored performance setups.
- 4-Bolt Inlet Pattern: Standard configuration ensures compatibility with common turbo hardware and V-band options.
- Lightweight Durability: Weighs only 0.25 lbs yet maintains structural integrity under high pressure.
Product Notes
- Verify turbo part number 454082 prior to installation for compatibility.
- Raw mill finish allows custom polishing or coating as needed.
- Packages in small protective box measuring 6 x 6 x 1 inches.
Installation Notes
- Professional installation recommended.
- TIG welding required for attaching to custom piping.
- Uses M8 bolts not included. matches OE turbo flange specs.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1998-2003 | Volkswagen | Jetta | TDI ALH |
| 1998-2003 | Volkswagen | Golf | TDI ALH |
| 1999-2004 | Volkswagen | New Beetle | TDI ALH |
| 2004-2006 | Volkswagen | Jetta | TDI BEW |
| 2004-2006 | Volkswagen | Golf | TDI BEW |
| 2005-2006 | Volkswagen | Jetta | TDI BRM |
| 2003-2006 | Audi | A3 | TDI |
Why Choose Vibrant?
- Proven in racing and street performance applications worldwide.
- Full T304 stainless construction for heat and pressure resistance.
- Made in USA with tight tolerances for consistent results.
Frequently Asked Questions
-
Q: Will this flange fit 2004 VW Jetta TDI BEW engine?
A: Yes it matches the Garrett GT1544V 454082 turbo inlet on BEW ALH and BRM 1.9L TDI engines. -
Q: What thickness is the flange material?
A: 0.25 inch thick T304 stainless steel optimized for welding and strength. -
Q: Does installation require special tools?
A: Standard TIG welder and M8 bolts suffice. gasket optional with proper torque.
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Secure small box 6 x 6 x 1 inches
- Weight: 0.25 lbs
