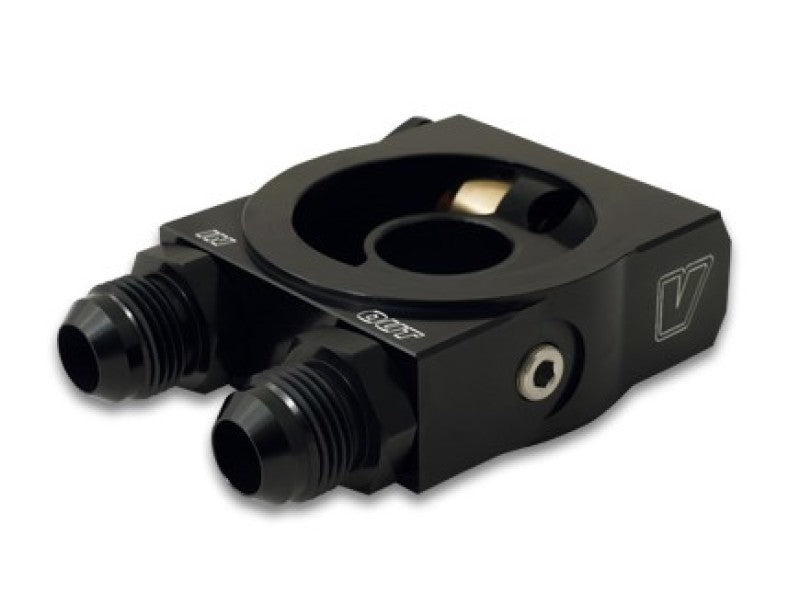

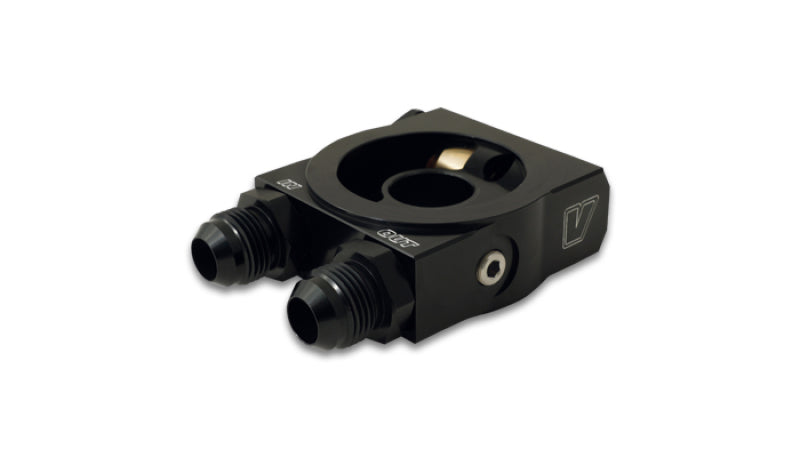

Vibrant Thermostatic Oil Cooler Sandwich Adapter w/Thermostat

Vibrant
VIB17065
690092178871
Oil Line Kits
11 Units In Stock - Ships Next Business Day
$ 187.99 $ 149.99
$ 149.99

SKU: 17065 | UPC: 690092178871

Vibrant Thermostatic Oil Cooler Sandwich Adapter w/Thermostat - M22x1.5 for GM LS Engines

The Vibrant Thermostatic Oil Cooler Sandwich Adapter (17065) threads between the engine block and oil filter on M22x1.5 applications like GM LS-series engines. Its built-in thermostat starts opening at 185°F to send hot oil through your cooler while bypassing it during warmup for quicker engine heat-up. This design delivers stable oil temperatures to protect bearings and reduce wear during track or street driving.

Key Features

  • Integrated Thermostat: Activates at 185°F for controlled flow to the cooler preventing overcooling and maintaining ideal viscosity
  • CNC Billet Aluminum Construction: Lightweight at 1 lb yet strong enough for high-pressure oil systems up to 300 PSI
  • Black Anodized Finish: Resists corrosion and withstands extreme engine bay heat and road contaminants
  • Dual -10AN Female Ports: High-flow outlets support powerful pumps and large cooler cores without restriction
  • Complete Kit Contents: Includes O-rings, gasket and hardware for direct bolt-on installation without extra parts

Product Notes

  • Confirm M22x1.5 oil filter thread on your engine block before ordering
  • Pair with Vibrant -AN hoses and bar-and-plate cooler cores for full system efficiency
  • Store in dry area to preserve seals and anodizing

Installation Notes

  • Professional installation recommended.
  • Apply thread sealant to AN fittings and torque adapter to 25 ft-lbs
  • Compatible with spin-on oil filters. mount cooler above oil level if possible

This Part Fits

Year Make Model Submodel
1997-2004 Chevrolet Corvette C5 Base, Z06 (LS1/LS6)
1998-2002 Chevrolet Camaro Z28, SS (LS1)
1998-2002 Pontiac Firebird Formula, Trans Am (LS1)
1999-2007 Chevrolet Silverado 1500 5.3L LM7, L59
1999-2006 GMC Sierra 1500 5.3L LM7, L59
2004-2007 Cadillac CTS-V Base (LS6)
LS Swaps Universal GM LS1/LS2/LS3/LS7 All M22x1.5 blocks

Why Choose Vibrant Performance?

  • Proven in drag racing and circle track applications for decades
  • Precision CNC machining ensures leak-free performance under boost
  • Full range of matching AN fittings, hoses and bungs for custom builds

Frequently Asked Questions

  • Q: Does this fit all LS engines?
    A: Yes, any Gen III or IV LS engine with M22x1.5 oil filter thread including LS1 through LS7 and truck variants. measure your block to confirm
  • Q: What material is the adapter made from?
    A: 6061-T6 billet aluminum with black anodizing for strength, heat resistance and long-term durability
  • Q: Is a warranty included and how to install?
    A: Backed by Vibrant limited lifetime warranty against defects. clean mating surfaces, install new O-rings and torque evenly for best results

Shipping & Handling

  • Method: UPS or FedEx Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Cardboard box 2.5 x 6 x 6.75 inches
  • Weight: Product 1 lb, Shipping 1.1 lbs

Request For Information

Have questions about Vibrant Thermostatic Oil Cooler Sandwich Adapter w/Thermostat? Fill out the form below and we'll get back to you by the next business day.
