SKU: 12426 | UPC: 690092178321

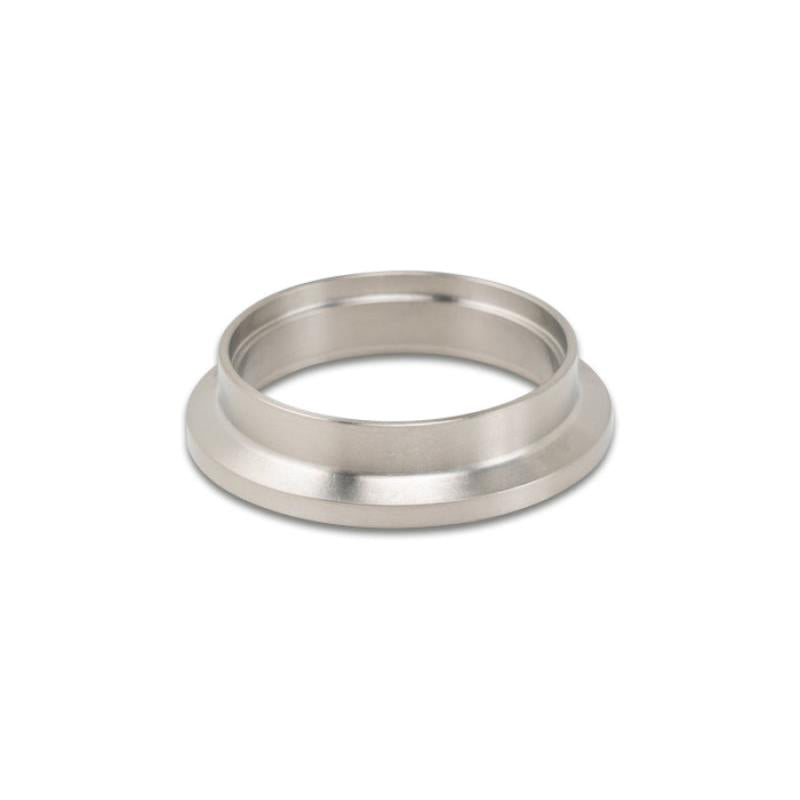

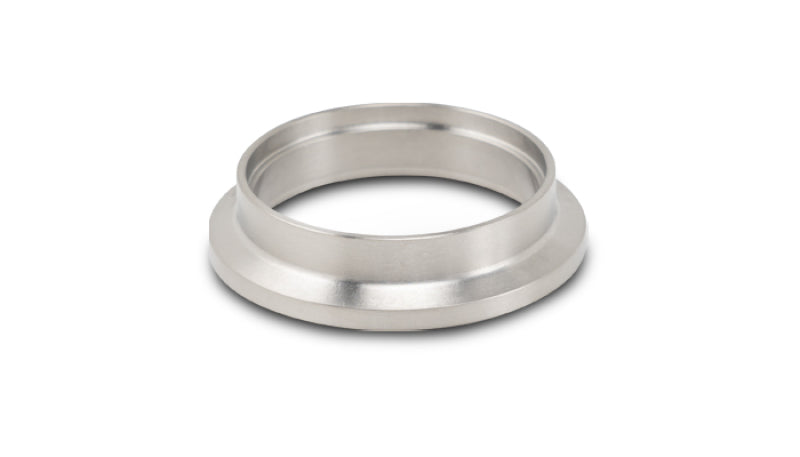

Universal Vibrant Titanium Outlet Flange for TiAL MV-S 38mm & Turbosmart Ultragate 40mm Wastegates
Vibrant Performance titanium outlet flange connects TiAL MV-S 38mm or Turbosmart Ultragate 40mm wastegates to downpipes on custom turbo manifolds for any high-boost setup. CNC-machined from Grade 2 titanium it weighs only 0.05 lbs for reduced mass while delivering leak-proof seals and corrosion resistance in extreme exhaust conditions. Ideal for turbocharged builds needing durability at 1600+ degrees F without warping.
Key Features
- Titanium Construction: Grade 2 titanium weighs 0.05 lbs cuts rotating mass resists corrosion in harsh exhaust environments
- Precision CNC Machined: Exact bolt hole alignment flat surfaces ensure gasket-free leak-proof performance
- TiAL MV-S 38mm Compatibility: Matches 38mm V-band outlet dimensions for direct fit to popular external wastegates
- Turbosmart Ultragate 40mm Fit: Aligns with 40mm V-band outlet on Ultragate series for seamless integration
- High Temperature Resistance: Handles 1600+ degrees F without warping or fatigue under repeated thermal cycles
Product Notes
- Designed for welding to 1.75 inch or 2 inch exhaust tubing at manifold downpipe junction
- Inspect V-band clamps separately for complete assembly
- Packages in 6 x 6 x 1 inch box for safe transit
Installation Notes
- Professional installation recommended.
- Weld flange to manifold using TIG method on clean prepared surfaces
- Compatible with standard V-band clamps and hardware from TiAL or Turbosmart
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | - | Turbo Manifolds | TiAL MV-S 38mm Wastegate Outlet |
| Universal | - | Turbo Manifolds | Turbosmart Ultragate 40mm Wastegate Outlet |
Why Choose Vibrant Performance?
- Established leader in exhaust fabrication components since 1995
- Uses aircraft-grade titanium for proven strength in racing applications
- Laser and CNC processes guarantee repeatability across production
Frequently Asked Questions
-
Q: Will this flange work with my TiAL MV-S 38mm wastegate on a custom manifold?
A: Yes it bolts directly to the 38mm V-band outlet and welds precisely to 1.75-2 inch tubing for any turbo setup -
Q: What grade of titanium is used and does it rust?
A: Grade 2 commercially pure titanium provides excellent corrosion resistance and maintains shape under repeated thermal cycles -
Q: Do I need special tools for installation?
A: TIG welder required for manifold attachment V-band clamp tool optional uses existing 4-bolt pattern no gasket needed
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: 6 x 6 x 1 inch cardboard box with protective foam
- Weight: 0.05 lbs product 0.2 lbs shipped
