SKU: 1451 | UPC: 690092128869

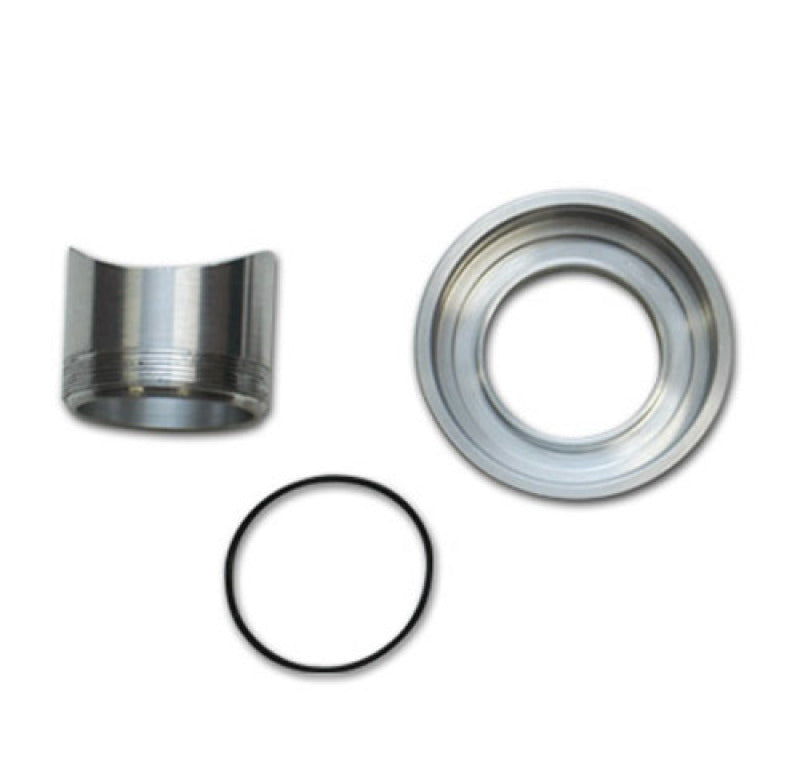

Vibrant Weld Flange Kit for HKS SSQ Style Blow Off Valves Aluminum Weld Fitting and Thread-On Flange
This Vibrant Performance flange kit equips turbocharged vehicles for HKS SSQ style blow off valves with a secure weld-on solution. Crafted for universal fit on custom charge pipes it delivers reliable boost control across JDM imports sport compacts and performance builds. The design ensures simple installation and future upgrades without cutting pipes.
Key Features
- 6061-T6 Aluminum Construction: Provides lightweight strength and corrosion resistance for long-term durability in high-boost environments
- Included O-Ring Seal: Creates a tight leak-free connection to maintain full boost pressure and prevent performance loss
- Radiused Weld Fitting: Allows direct screw-on attachment to the mating flange for straightforward welding and removal
- Thread-On Mating Flange: Enables quick swaps to other compatible BOVs like Greddy Tial or Synapse without re-welding
- HKS SSQ Bolt Pattern: Matches SSQV and SSQ V valves precisely for bolt-on compatibility on 50mm outlets
Product Notes
- Designed for welding onto 2-inch OD aluminum or stainless charge pipes
- Clean weld area thoroughly before installation for strongest bond
- Packaged securely to prevent damage during transit
Installation Notes
- Professional installation recommended.
- Tack weld fitting in place then fully weld around circumference using TIG method
- Compatible with standard HKS SSQ mounting hardware 4-bolt pattern
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | Turbocharged Vehicles | HKS SSQ BOV Piping |
| 1986-2005 | Toyota | Supra | Turbo |
| 1993-2002 | Toyota | MR2 | Turbo |
| 1989-2005 | Mazda | Miata MX-5 | All Turbo Conversions |
| 1991-2002 | Nissan | 300ZX | Twin Turbo |
| 2004-2021 | Subaru | WRX STI | All |
Why Choose Vibrant Performance?
- Trusted leader in exhaust and fabrication components for motorsports
- Machined to exact tolerances for consistent performance results
- Backed by proven engineering for high-horsepower turbo applications
Frequently Asked Questions
-
Q: Will this fit HKS SSQV blow off valves?
A: Yes it matches the exact bolt pattern and outlet size for SSQ V and SSQV models ensuring direct compatibility -
Q: What material is used in this kit?
A: Billet 6061-T6 aluminum with clear anodized finish on both weld fitting and thread-on flange for heat and wear resistance -
Q: Is welding required and what tools?
A: Yes weld the radiused fitting to your charge pipe TIG welding recommended includes all parts no additional hardware needed
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact protective box 6 x 4 x 2 inches
- Weight: 0.31 lbs
