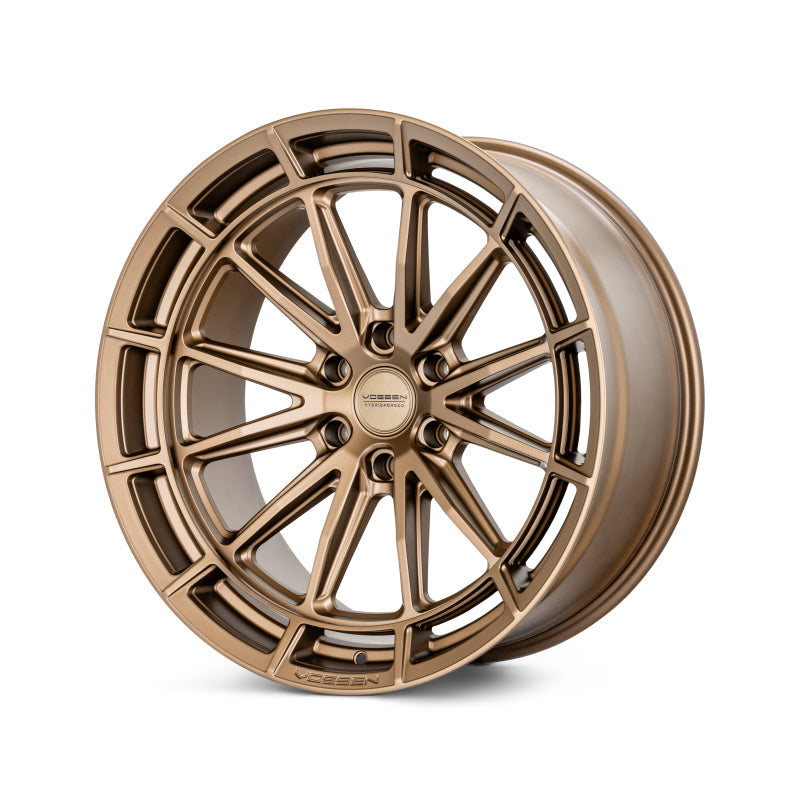

Vossen HFX-5 - 20x9.5 - 6x139.7 - ET30 - Deep Face - 106.1 - Satin Bronze Wheel

The Vossen HFX-5 is a 6-lug Hybrid Forged wheel built on Vossen's flow forming platform, designed specifically for 6-lug light trucks, SUVs, and full-size pickup trucks. The HFX-5 uses a multi-spoke face design with an aggressive deep concave profile that fills the fender well on lifted and leveled trucks. Each HFX-5 is manufactured using Vossen's flow forming process, which produces a stronger and lighter barrel than conventional casting.

Hybrid Forged Flow Forming Process

The HFX-5 begins as a gravity-cast aluminum face. After casting, the wheel is mounted to a flow forming drum and hydraulic rollers stretch and compress the barrel material radially, improving grain structure. This produces a barrel that is denser, stronger, and lighter than a conventionally cast barrel. The result approaches the properties of a fully forged barrel at a lower cost.

Deep Concave Profile

The HFX-5 is offered in a Deep concave profile. The deep profile positions the face of the wheel significantly inboard relative to the outer lip, creating pronounced three-dimensional depth especially visible on trucks with wider-than-stock tires. It also maximizes brake caliper clearance.

6-Lug Truck Platform Compatibility

This listing is for the HFX-5 in 20x9.5, 6x139.7, ET30, 106.1mm center bore. 6x139.7 fitment covers GM 1500 Silverado, Sierra, Toyota Tundra, 4Runner, Nissan Titan, and Lexus GX platforms. Hub centric rings are recommended when vehicle hub bore does not match. Lug nuts, tires, TPMS sensors not included.

Finish: Satin Bronze

Satin Bronze features a warm metallic tone with a low-gloss satin clear coat, offering a distinctive earth-toned aesthetic that pairs exceptionally well with off-road and overland truck builds.

What's Included

• 1 x Vossen HFX-5 wheel in 20x9.5, 6x139.7, ET30, Satin Bronze (single)
• 1 x Vossen center cap
• Vossen valve stem cap

Note: Lug nuts, tires, TPMS sensors, and hub centric rings are not included. Sold individually.

Product Specifications

Frequently Asked Questions

Q: What vehicles does the 6x139.7 bolt pattern fit?
A: The 6x139.7 bolt pattern fits GM 1500 trucks (Silverado, Sierra), Toyota Tundra, 4Runner, Nissan Titan, and Lexus GX, among others.

Q: Do I need hub centric rings?
A: Hub centric rings are recommended if your vehicle's hub bore is smaller than 106.1mm. They eliminate vibration caused by the wheel sitting off-center on the hub.

Q: What lug nuts do I need?
A: Lug nuts are not included. You will need lug nuts compatible with your vehicle's thread pitch and the HFX-5 seat type (conical/tapered 60°). Consult your vehicle manual for the correct thread pitch.

Q: What tire sizes work with a 20x9.5 wheel?
A: Common tire sizes for a 20x9.5 wheel include 275/55R20 and 285/50R20, depending on your truck's fender clearance and lift level.

Q: How does the HFX-5 compare to the HF6-5?
A: The HFX-5 uses Vossen's Hybrid Forged flow forming process with a cast face and flow formed barrel, while the HF6-5 is a full monoblock forged wheel. The HFX-5 offers a more accessible price point while still delivering improved strength over conventional casting.

Q: Are TPMS sensors compatible with the HFX-5?
A: Yes. The HFX-5 valve stem hole accommodates standard snap-in and clamp-in TPMS sensors. TPMS sensors are not included and must be sourced separately.

Q: What is the warranty on the HFX-5?
A: Vossen provides a 5-year workmanship warranty plus a lifetime structural warranty on all HFX-5 wheels.

Q: Is the HFX-5 suitable for lifted trucks?
A: Yes. The HFX-5 was designed specifically with lifted and leveled trucks in mind. The deep concave profile fills the fender well on wider-than-stock tire setups common on lifted trucks.
